Neutrik Ethercon Chassis D Series 110 Punchdown Ne8fdv-y110 Connector

Neutrik EtherCON Chassis D Series 110 Punchdown NE8FDV-Y110 CONE8FDVY110

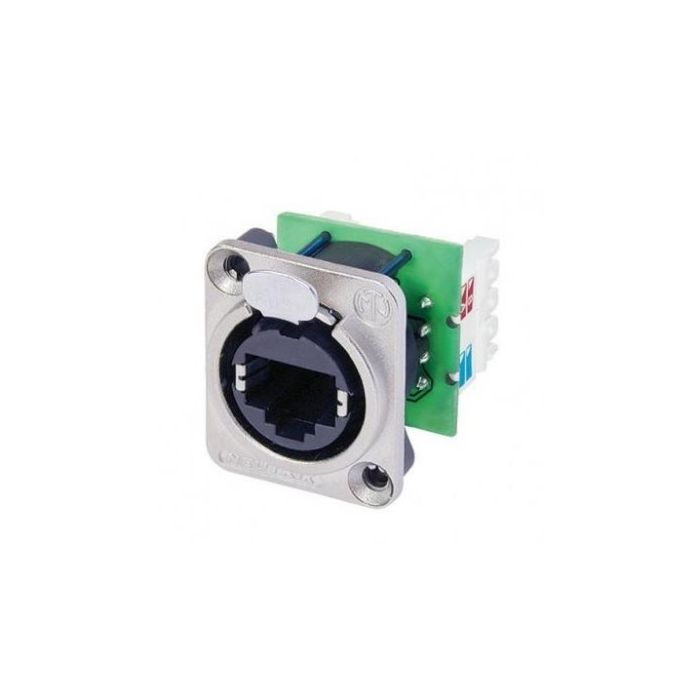

Neutrik Panel mount receptacle with IDC 110 punch down terminals. D-sized metal flange with the secure latching system.

- Max. panel thickness 4 mm/ 0.157"

- Includes 2 mounting screws.
- Frequency bandwidth: 1 - 100 MHz
- Number of contacts: 8
- Rated current: 1.5 A
- AWG: 26 - 20
- Dielectric strength: 1000 V ac rms
- Contact resistance: < 10 m
- Insulation resistance: > 500 M
- Category 5e
