Neutrik Ethercon Chassis A Series 110 Punchdown Term Ne8fav-y110

Neutrik EtherCON Chassis A Series 110 Punchdown Term NE8FAV-Y110 CONE8FAVY110

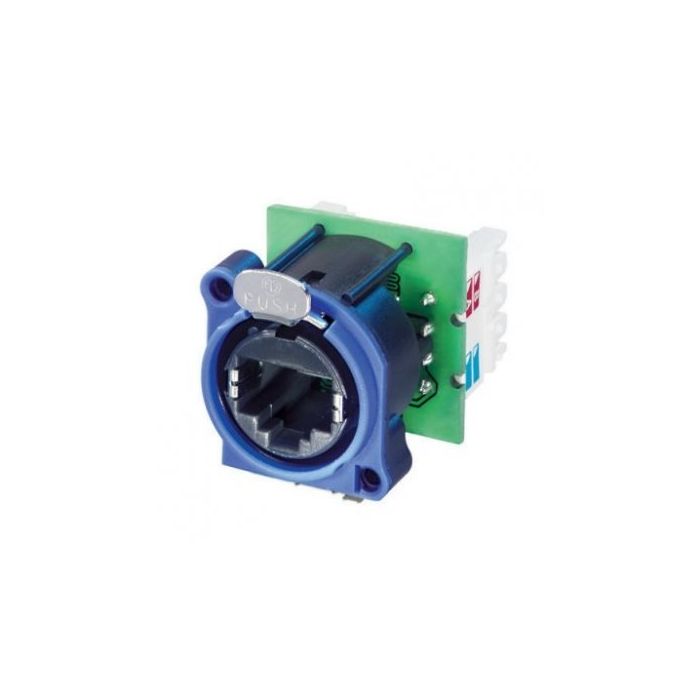

Neutrik Panel mount receptacle with IDC 110 punch down terminals, XLR A Series cutout with the secure latching system. Max. panel thickness 3 mm. Includes 2 mounting screws. Color coding is available, picture shows a blue coding plate, standard is black.

Frequency bandwidth: 1 - 100 MHz
Number of contacts: 8
Rated current: 1.5 A
AWG: 26 - 20
Dielectric strength: 1000 V ac rms
Contact resistance: < 10 m
Insulation resistance: > 500 M
Category 5e
