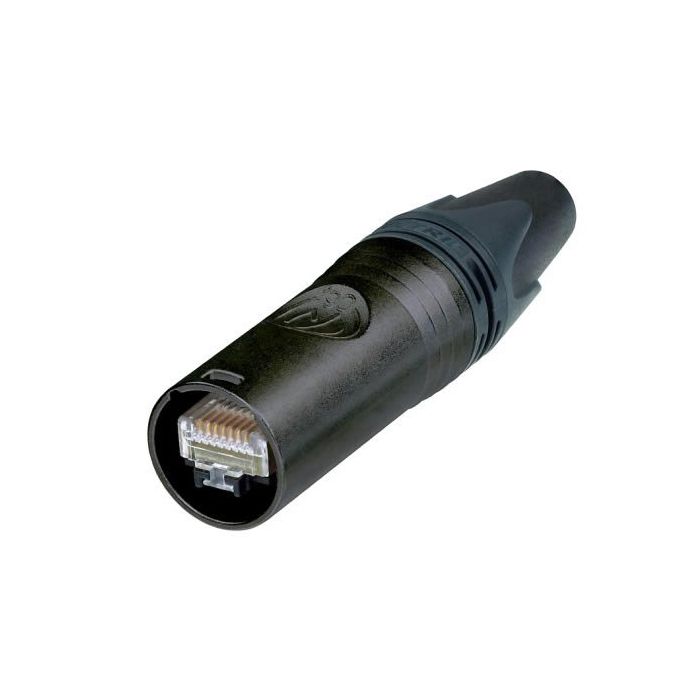

Neutrik Ethercon Cable Connector Cat6a Black Plating Ne8mx6-b

Neutrik EtherCON Cable Connector Cat6A Black Plating NE8MX6-B CONE8MX6-B

NE8MX6-B

EtherCON CAT6A cable connector self-termination, black plating
The set NE8MX6 includes a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6ARJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and gauge of AWG 27 to 22 solid or stranded wire. This self-termination version is water protected according to IP65.
Available from June 2015

Features & Benefits
Ruggedized connector with CAT6A component compliance according to ISO / IEC 11801 and TIA / EIA 568-C.2
PoE+ compliant according to 802.3at Type2
IP 65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
Rugged latch lock system million fold proven
Intermateable with the existing etherCON CAT5 range
Unique Neutrik chuck-type strain relief
