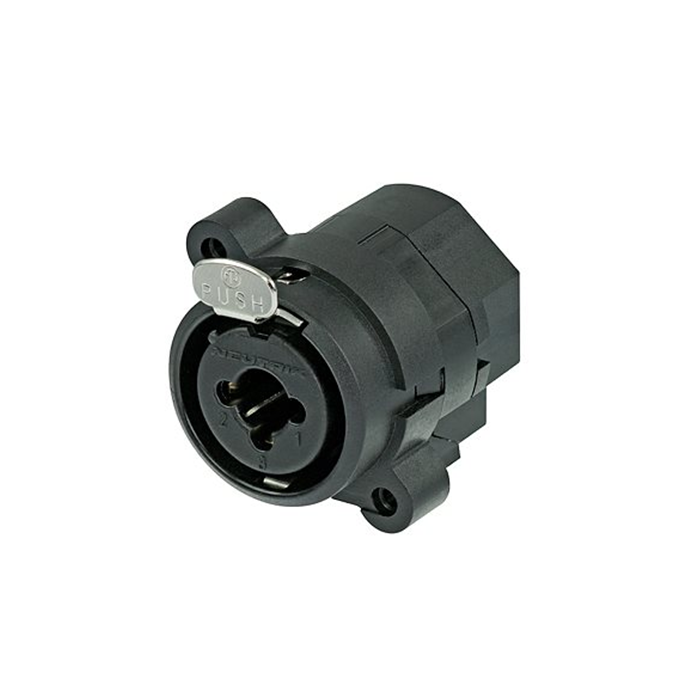

Neutrik Combo XLR/Jack Stereo 6 Pole Chassis Solder NCJ6FI-S CONCJ6FIS

Combo XLR/Jack Stereo 6 Pole Chassis Solder

3 pole XLR female receptacle with 1/4 stereo jack without normalling. With solder cups for wire termination.
Combined XLR receptacle and phone jack. New attractive `front end` design (30% less protruding from panel than original). Saves racks space by combining 2 connectors in one housing. Horizontal or vertical PCB mounting or hard wire soldering. Full normalled. Stereo or mono version. Very low conductor capacitance, therefore suitable for Digital Audio. Fully compatible to the predecessor Combo.

Fastening: Self-tapping PT screws with thread 2.9x1.06 and tri-rondular configuration.
Contact resistance: XLR: < 10 m
Jack: < 20 m
Rated current: 7.5 A
Rated voltage: 50 V ac
Insulation resistance: > 500 M after damp heat test
Dielectric strength: 1500 V dc
Capacitance: < 2 pF
