Neutrik Black Female Speakon Ip52 Stx 8 Pole Cables Nlt8fx-bag

Neutrik Black Female SpeakON IP52 STX 8 Pole Cables NLT8FX-BAG CONLT8FXBAG

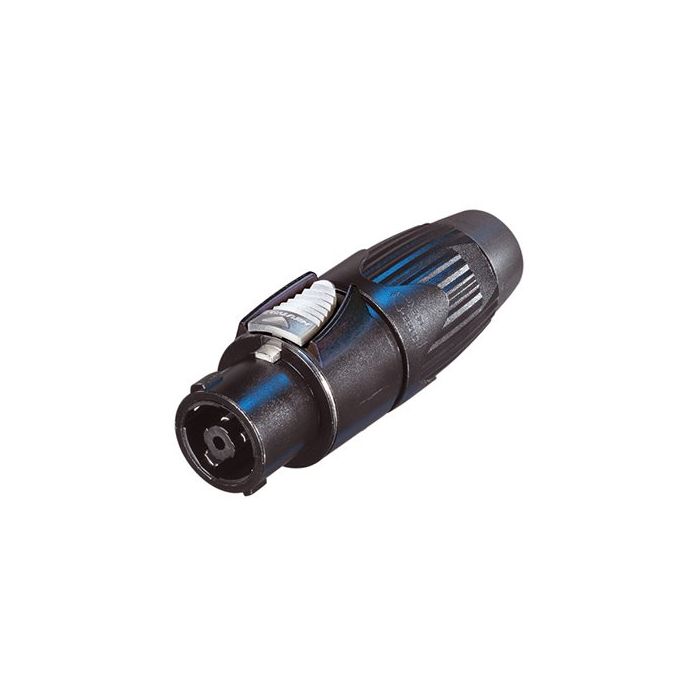

SpeakON 8-pole female cable connector, black-chrome metal housing and chuck type strain relief.
The new STX Series is the next generation of 8 pole SpeakON connectors especially designed for heavy duty amplifier-loudspeaker applications like professional tour sound. The extremely rugged and durable STX Series feature an all metal housing and metal reinforced latch lock system.

Features & Benefits:

- Chuck type strain relief
- Current rating 40 Amp continuous, 50 Amp audio with 50% duty cycle
- Robust and durable all metal housing
- Reinforced metal quick lock system for ease and precise locking
- Extra large solder contacts for up to 6mmSq (AWG10) wires
- Mate with all available Speakon products

Technical Specifications:

- Rated current per contact: 40 A RMS continuous
- Rated current per contact: 50 A audio signal, duty cycle 50 %
- Dielectric strength: 4kV peak
- Rated voltage: 250 V (Insulation)
- Cable O D: 8 - 20 mm
- Wire size: 6 mm?
- Wire size: 10 AWG
- Wiring: solder contacts
- Shell: Zinc die cast (ZnAl4Cu1)
- Protection class: IP 52 (mated condition)

Priced per connector: available in any quantity

Packing information: Box quantity = 50
