Mol3 Weatherseal Seamless Latch With Auto Clip Mol3dw

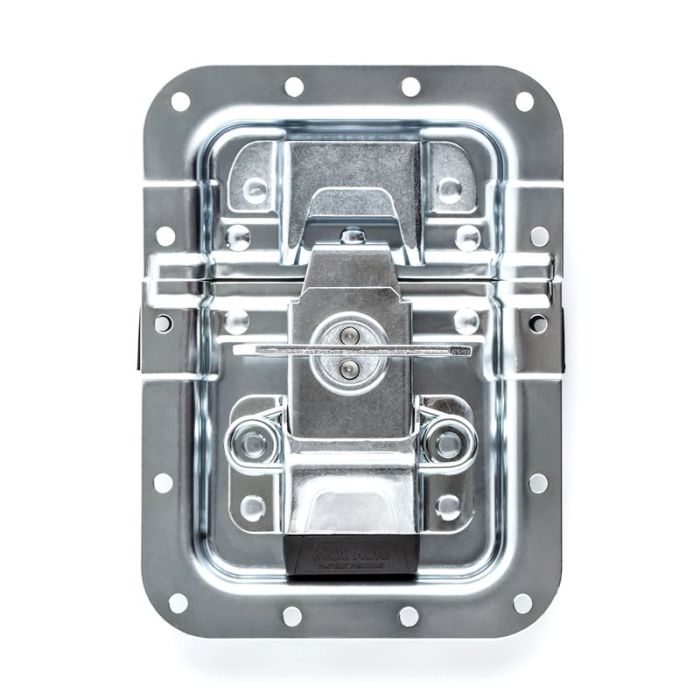

MOL3DW WeatherSeal Latch With Automatic Open/Close Function

New WeatherSeal technology creates seamless latches that close the lid tighter, eliminating gap. This makes it dust and water resistant and keeps contents safer from ingress when closed

Securely close your case with a Penn Elcom MOL automatic positioning latch mounted in a large recessed dish, for use on large-sized cases. The PennBrite zinc plating offers excellent protection against corrosion with a distinctive PennBrite finish. The fixing holes are 13mm / 1/2away from the central split of the dish making it perfect for hybrid edge extrusions.

Around the globe, the MOL name is synonymous with high quality and dependability. Invented in 1995, the MOL range of flight case latches revolutionised the industry and redefined standards in flight case locking. This new generation of MOL latches is designed with a cantilever automatic open / close function, making locking and unlocking cases a whole lot easier, even with one hand or in the dark.

The low-level T-Cam latch mechanism allows the latch to be almost completely flush in a 10mm deep dish.

Offset for extrusions:E082571/2000, E0826/2000, E0825/2000,

Product Features

- With MOL3 Automatic Positioning Latch System

- Dish Width: 127mm / 5"

- Dish Height: 174mm / 6 7/8"

- Dish Depth: 10mm / 3/8

- Offset: 27mm / 1 1/16" to match most Hybrid Edge Extrusions

- Lockable: No

- Finish: PennBrite

- Material: 1.2mm / 18 gauge Steel

- Weight: 0.44kg / 0.97lb

- Maximum Working Load Capacity: 140kg / 308lb

Installation Information

- Panel Cut-Out Size:

- Cut-Out Width: 96mm / 3 3/4"

- Cut-Out Height: 96mm + 49mm / 3 3/4" + 1 15/16"

- From Split to Hole Centre: 13mm / 1/2" - Mounting Holes: 14 x 5.2mm / 3/16"

- Rivets Required for Installation: 14

- Suits L0526 Backplate
