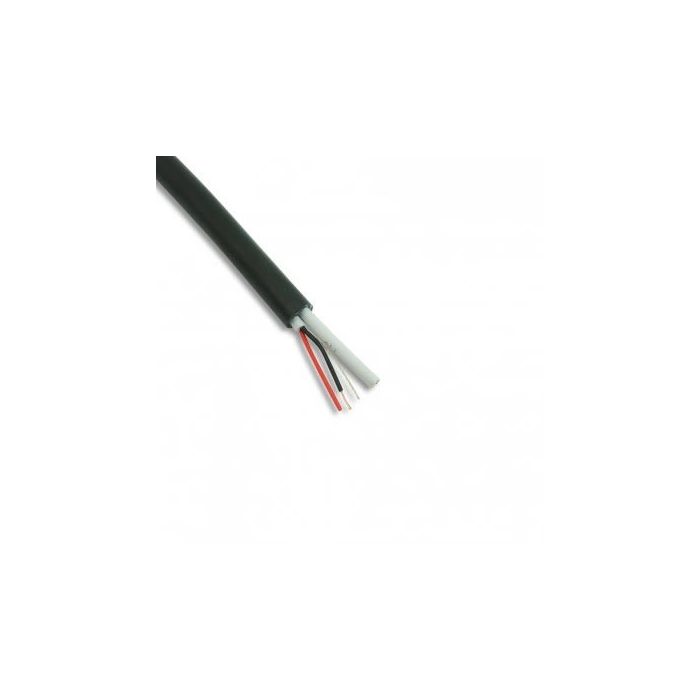

Microphone Multicore Cable 2 Pair Aes-ebu Black For Dmx And Analogue

Penn Elcom unified oxygen free copper (OFC) multi-pair cable available in 2, 4, 8, 12, 16 & 24 cores.

Numbered single pair & screen with Quick Strip allows both the jacket and foil screen to be stripped simultaneously, saving the wireman time in house or on site.

This cable is a perfect choice for touring & install applications and offers superb performance and reliability for both analogue and digital signals.

Free sample packs available upon request. All cable is priced per metre and price breaks are available for bulk quantities.

PRICED PER METRE

Brand: Penn Elcom
Conductor: Stranded copper wire 18x0.10mm=0.14mm AWG 26 bare
Insulation: Foam-Skin PE (02YS)
Twisting: 2 cores to a pair (2 pairs)
Pair shield: Alu/PVC foil metal inside
Drain wire : Stranded copper tin plated 7 x 0.16mm= 0.14mm2 AWG 26
Inner Sheath: Grey PVC
Jacket: Soft PVC
Colour: Black
Diameter: 8.50mm + - 0.25mm
Conductor resistance: max 138Ohm/km at 20 degrees centigrade
Insulation resistance: min 100MOhm x km at 20 degrees centigrade
Capacitance : C/C approx 40pF/m @1kHz
Impedance: approx 105 ohm @ 1Mhz
Operating voltage: max 50-75 V AC/DC
Temperature range: -20 to + 70 Centigrade
Weight: 0.082kg/m / 0.1808Lb/m
