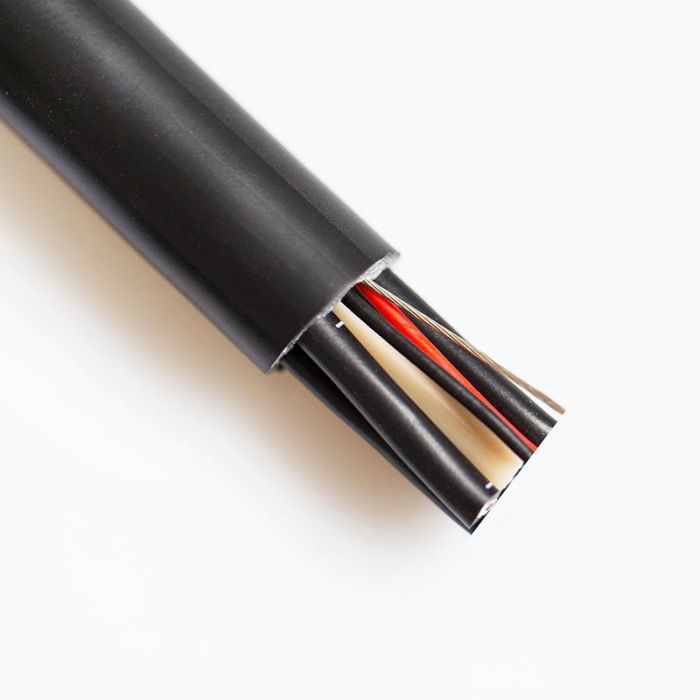

Mic Multicore Cable 6 Pair Aes-ebu Black For Dmx & Analogue Caunc06

Penn Elcom Mic Multicore Mutiway Cable 6 Pair AES-EBU Black for DMX & Analogue CAUNC06

Penn Elcom unified oxygen free copper (OFC) multi-pair cable available in 2, 4, 6, 8, 12, 16, 24 and 32 cores.

Numbered single pair & screen with Quick Strip allows both the jacket and foil screen to be stripped simultaneously, saving the wireman time in house or on site. This cable is the perfect choice for touring & install applications. It offers superb performance and reliability for both analogue and digital signals. Free sample packs available upon request.

All cable is priced per metre and price breaks are available for bulk quantities.

PRICED PER METRE

• Brand: Penn Elcom
• Conductor: Stranded copper wire 18x0.10mm=0.14mm AWG 26 bare
• Insulation: Foam-Skin PE (02YS)
• Twisting: 2 cores to a pair (6 pairs)
• Pair shield: Alu/PVC foil metal inside
• Drain wire : Stranded copper tin plated 7 x 0.16mm= 0.14mm2 AWG 26
• Sheath: PVC Jacket: Soft PVC
• Colour: Black
• Diameter: 11.90 mm + - 0.30mm
• Conductor resistance: max 138Ohm/km at 20 degrees centigrade
• Insulation resistance: min 100MOhm x km at 20 degrees centigrade
• Capacitance: C/C approx 40pF/m @ 1kHz
• Impedence: approx 105 ohm @ 1Mhz
• Operating voltage: max 50-75 V AC/DC
• Temperature range: -20 to + 70 Centigrade
