Medium Recessed Butterfly Latch Very Shallow Offset L907/915/07

Penn Elcom Medium Recessed Butterfly Latch Very Shallow Offset L907/915/07 L907/915/07

Medium Recessed Butterfly Latch in Very Shallow 27mm / 1 1/16 Offset

Securely close your case with a Penn Elcom latch mounted in a medium recessed dish. For use on small to medium-sized cases. The PennBrite zinc plating offers an excellent protection against corrosion with a distinctive bright Penn Elcom finish. With a depth of only 7mm / 1/4, the very shallow dish will not protrude inside the case, even when used with panels as thin as 7mm / 1/4. A 27mm / 1 1/16 offset on each half of the dish accommodates the corresponding edge extrusions and provides a flush and clean looking installation.

Product Features?:
- Dish Width: 102mm / 4
- Dish Height: 105mm / 4 1/8
- Dish Depth: 7mm / 1/4
- Offset: 27mm / 1 1/16
- Lockable: No
- Finish: PennBrite
- Material: 1.2mm / 18 gauge Steel
- Weight: 0.21kg / 0.46lb
- Maximum working load capacity: 90kg / 198.42lb

Installation Information?:

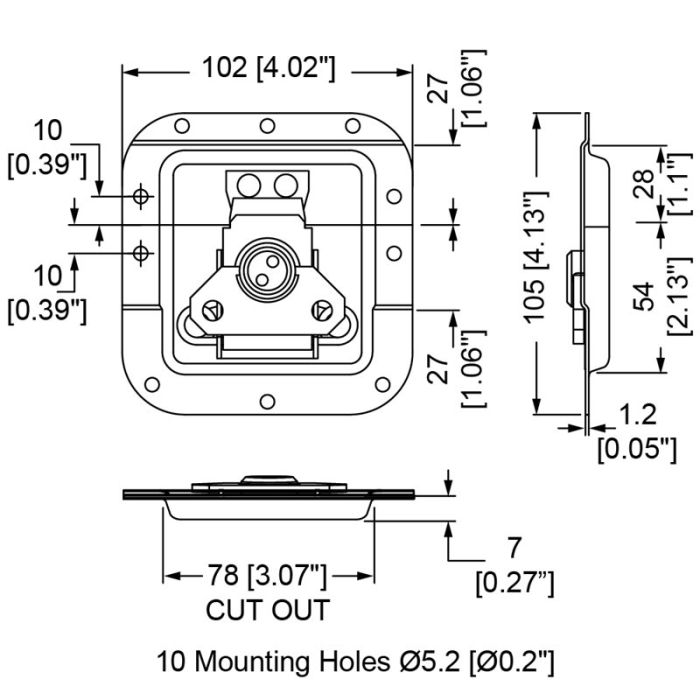

- Panel Cut-Out Size:
- Cut-Out Width: 78mm / 3
- Cut-Out Height: 54mm + 28mm / 2 1/8 + 1 1/8
- From Split to Hole Centre: 10mm / 3/8
- Mounting Holes: 10 x 5.2mm / 3/16
- Rivets Required for Installation: 10
- Suits L0906 Backplate
