Medium Recessed Butterfly Latch Low Mount Alignment Dowel L915856z

Penn Elcom Medium Recessed Butterfly Latch Low Mount Alignment Dowel L915856Z L915856Z

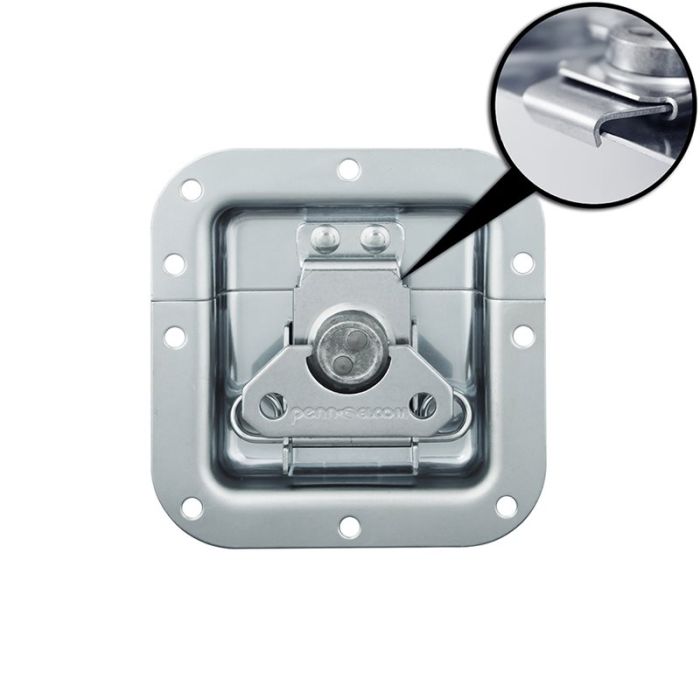

Medium Recessed Butterfly Latch in Plain Deep Dish with Low Mount and Alignment Dowel

Securely close your case with a Penn Elcom latch mounted in a medium recessed dish. For use on small to medium-sized cases.

For cases that do not use edge location extrusions, the alignment dowel ensures that the two halves of the latch will align perfectly; making the locking process faster and easier. The low mount technology allows you to hook the latch onto the edge of the dish to avoid running into it when opened, preventing damage to the latch or yourself.

Product Features?:
- With Alignment Dowel for Easy Closing
- With Low Mount Technology: Hook the Latch on the Edge of the Dish
- Dish Width: 102mm / 4
- Dish Height: 105mm / 4 1/8
- Dish Depth: 13mm / 1/2
- Offset: No
- Lockable: No
- Finish: PennBrite
- Material: 1.2mm / 18 gauge Steel
- Weight: 0.23kg / 0.5lb
- Maximum working load capacity: 90kg / 200lb

Installation Information?:
- Panel Cut-Out Size:
- Cut-Out Width: 78mm / 3
- Cut-Out Height: 54mm + 28mm / 2 1/8 + 1 1/8
- From Split to Hole Centre: 10mm / 3/8
- Mounting Holes: 10 x 5.2mm / 3/16
- Rivets Required for Installation: 10
- Suits L0906 Backplate
