Medium Recessed Butterfly Latch Alignment Dowel L91556z

Penn Elcom Medium Recessed Butterfly Latch Alignment Dowel L91556Z L91556Z

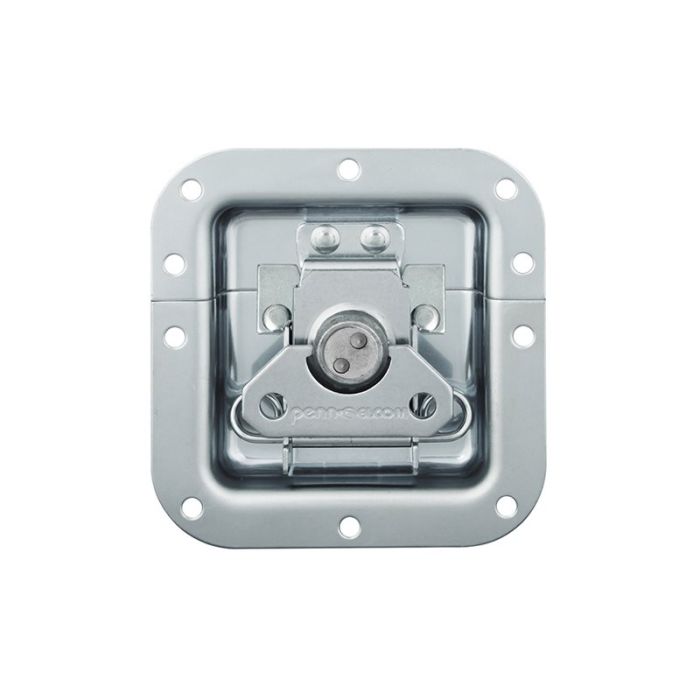

Medium Recessed Butterfly Latch in Plain Deep Dish with Alignment Dowel

Securely close your case with a Penn Elcom latch mounted in a medium recessed dish. For use on small to medium-sized cases. The PennBrite zinc plating offers an excellent protection against corrosion with a distinctive bright Penn Elcom finish. For uses on cases that do not use edge location extrusions, the alignment dowel ensures that the two halves of the latch will align perfectly; making the locking process faster and easier.

Product Features?:
- With Alignment Dowel for Easy Closing
- Dish Width: 102mm / 4
- Dish Height: 105mm / 4 1/8
- Dish Depth: 13mm / 1/2
- Offset: No
- Lockable: No
- Finish: PennBrite
- Material: 1.2mm / 18 gauge Steel
- Weight: 0.23kg / 0.5lb
- Maximum working load capacity: 90kg / 200lb

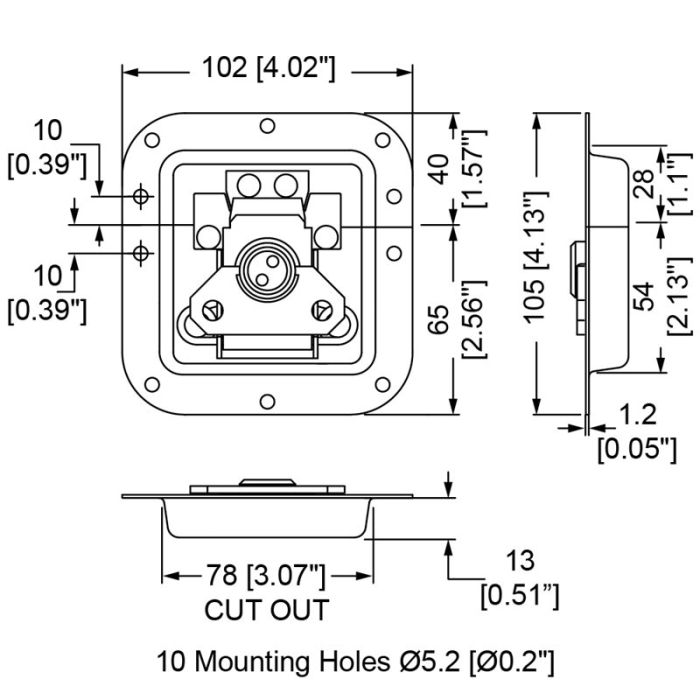

Installation Information:
- Panel Cut-Out Size:
- Cut-Out Width: 78mm / 3
- Cut-Out Height: 54mm + 28mm / 2 1/8 + 1 1/8
- From Split to Hole Centre: 10mm / 3/8
- Mounting Holes: 10 x 5.2mm / 3/16
- Rivets Required for Installation: 10
- Suits L0906 Backplate
