Medium Recessed Butterfly Latch Alignment Dowel L91556k

Penn Elcom Medium Recessed Butterfly Latch Alignment Dowel L91556K L91556K

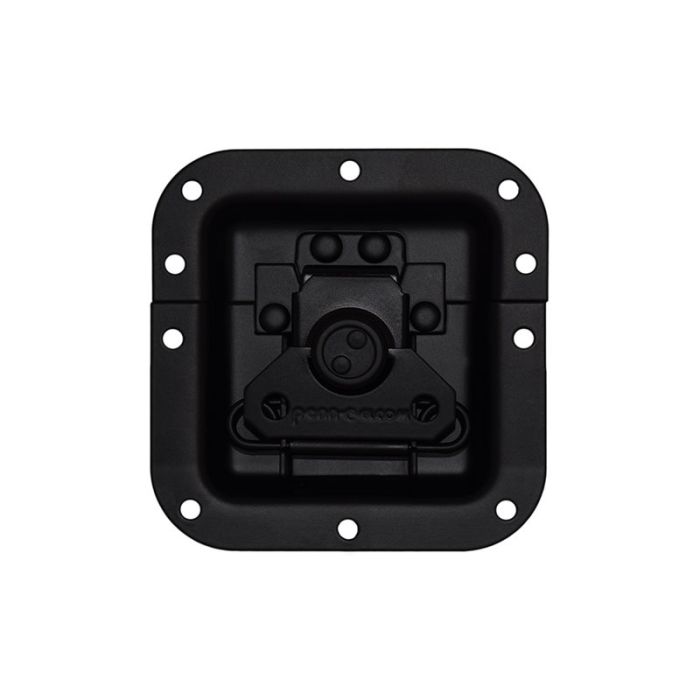

Medium Recessed Butterfly Latch in Plain Deep Dish with Alignment Dowel

Securely close your case with a Penn Elcom latch mounted in a medium recessed dish. For use on small to medium-sized cases. The black powder coating offers a long lasting protection against corrosion with a durable finish. For uses on cases that do not use edge location extrusions, the alignment dowel ensures that the two halves of the latch will align perfectly; making the locking process faster and easier.

Product Features:?
- With Alignment Dowel for Easy Closing
- Dish Width: 102mm / 4
- Dish Height: 105mm / 4 1/8
- Dish Depth: 13mm / 1/2
- Offset: No
- Lockable: No
- Finish: Black Powder Coated
- Material: 1.2mm / 18 gauge Steel
- Weight: 0.23kg / 0.5lb
- Maximum working load capacity: 90kg / 198.42lb

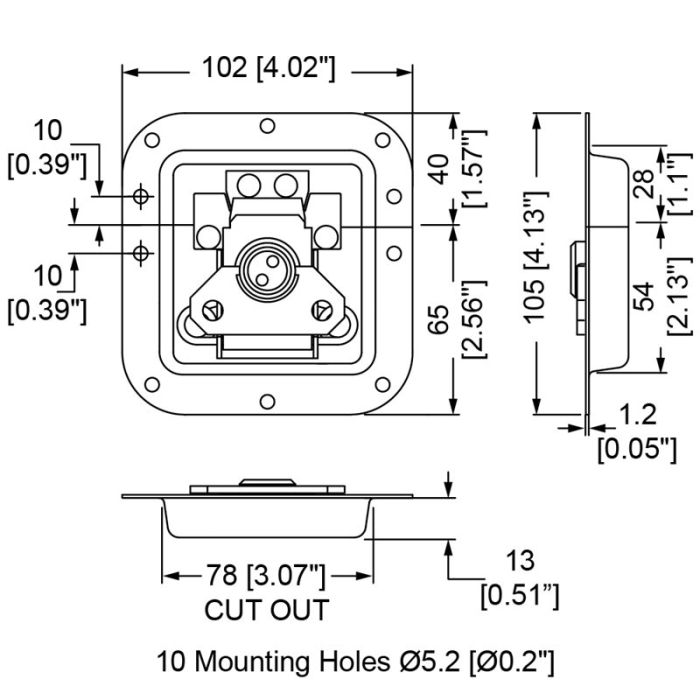

Installation Information?:
- Panel Cut-Out Size:
- Cut-Out Width: 78mm / 3
- Cut-Out Height: 54mm + 28mm / 2 1/8 + 1 1/8
- From Split to Hole Centre: 10mm / 3/8
- Mounting Holes: 10 x 5.2mm / 3/16
- Rivets Required for Installation: 10
- Suits L0906 Backplate
