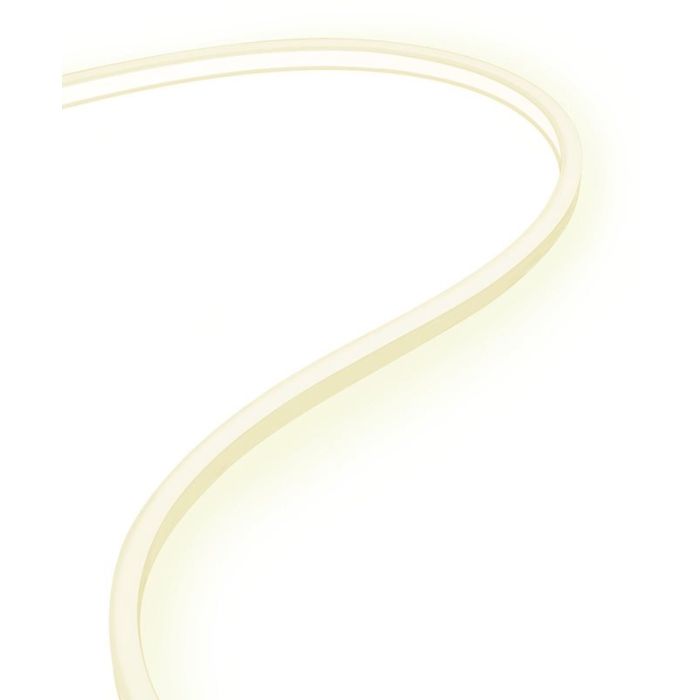

Led Lfd400t-g1-830-06 Linearlight Flex Diffuse Top 24v 4052899581685

LINEARlight FLEX DIFFUSE 400 Top - LED modules for professional and industrial applications Osram LFD400T -G1-830-06 Supplied with 1 pre-fitted power connector (FX-DCS-G1-CM2PF-IP67-0500) Product benefits: IP67 protection with high performance silicone Outdoor use possible: UV and salt mist resistant (UV acc. to ISO 4892-2 - Method A, salt mist acc. to IEC 60068-2-52 severity 1) Product features: Diffused light lines without visible spots Flexible and cuttable module to support design freedom Long operational length per single power feed possible (up to 6m) Ideal for luminaire designs Extra strong self-adhesive backside for easy mounting 24V technology for easy dimensioning Recommended in system use with OPTOTRONIC Increased reliability due to single piece reel-to-reel technology Dimmable with PWM technology Areas of application: Individual and customized luminaires Organic shaped luminaires Architectural Integration e.g. coves, walls Object integration e.g. handrails Signage and illuminated advertising Technical data: EAN: 4052899581685 (was 4052899953529) Nominal voltage: 24V Rated wattage: 43.2W Reverse Voltage: 25V Input voltage range: 23-25V Nominal wattage per meter: 7.2W Luminous efficacy: 57 lm/W Colour temperature: 3000K Colour rendering index Ra: >80 Colour appearance: Warm White Luminous flux: 2460lm Luminous flux per meter: 410lm Beam angle: 120 Deg Number of LEDs per module: 840 Number of LEDs per meter: 140 Length: 6000 mm Width: 14.1 mm Height: 10.8 mm Product weight 1040 g Temperature range in operation: -20 to +65 C Lifespan (L70/B50): 50000h Dimmable: Yes Dimming method: PWM Lowest bending radius: 100 mm With end piece: No With connection set: Yes Self-adhesive: Yes Standards: CE/ENEC/10 VDE/EAC/UL Recognized component according UL 8750
