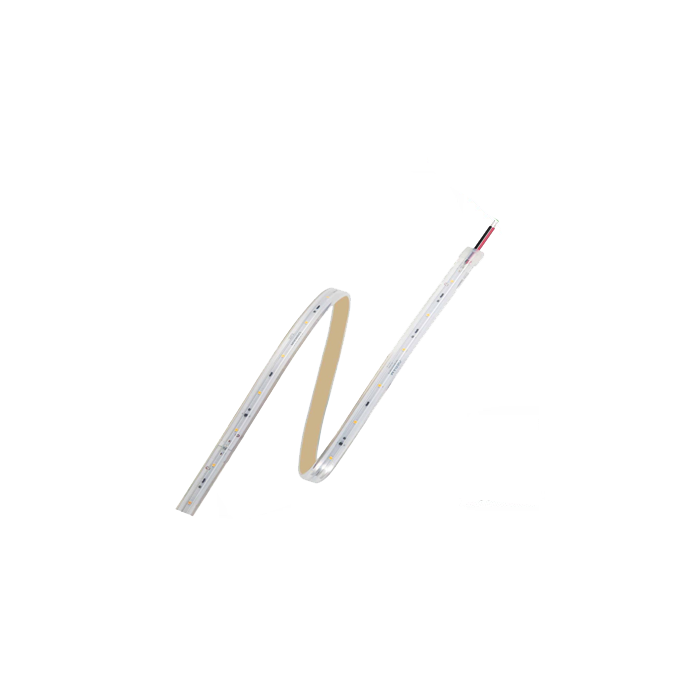

Led Vfp600-g2-865-06 Value Flex Advanced Ip66 65k 24v 4052899316843

Osram Led Vfp600-g2-865-06 Value Flex Advanced Ip66 65k 24v 4052899316843 LEDVFP600G2865

VFP 600-865-6000 Each reel comes with 24 mounting clips, 48 screws, 10 end caps and 4 IP65 connectors.

Product benefits

Energy saving low-power flexible LED strip
Easy installation with track system

Product features

Multiply cuttable LED strip with connectors (IP20)
Available with light colour Warm White, Cool White
Beam angle per module 120 Deg
Dimmable



Hospitality
Display cabinet lighting
Signage
Architecture lighting
Wall integration

EAN: 4052899316843
Nominal voltage: 24 V
Power consumption: 46 W
Reverse Voltage: 25 V
Input voltage range 23-25 V
Colour temperature: 6500 K
Colour appearance: Daylight
Colour rendering index: 80 Ra
Size of smalles unit: 166 mm
Colour consistency: < 4 SCDM
Lifespan (@ Tc = 60 C): up to 35000 h
Light colour LED: White
Luminous efficacy: 78 lm/W
Beam angle: 120 Deg
Number of LEDs per module: 216
Number of LEDs per meter: 36
Luminous flux: 3600 lm
Luminous flux per m: 600 lm
Nominal current: 1.92 A
Length: 5998 mm
Width: 11 mm
Height: 4.8 mm
Product weight: 75 g
Temperature range in operation: -10 +60 C
Dimmable: Yes
Standards: Acc. to IEC 62471/Acc. to IEC 60598-1/Acc. to EN 60529/Acc. to EN 62031/Acc. to EN 55015/Acc. to EN 61547/ROHS/CE/VDE
Manufacturers Website: www.osram.com/osram_com/products/led-technology/light-engines-and-modules/linear-led-modules-for-flexible-and-individualized-lighting-solutions/flexible-led-modules-for-private-and-semi-professional-applications/value-flex-600/
