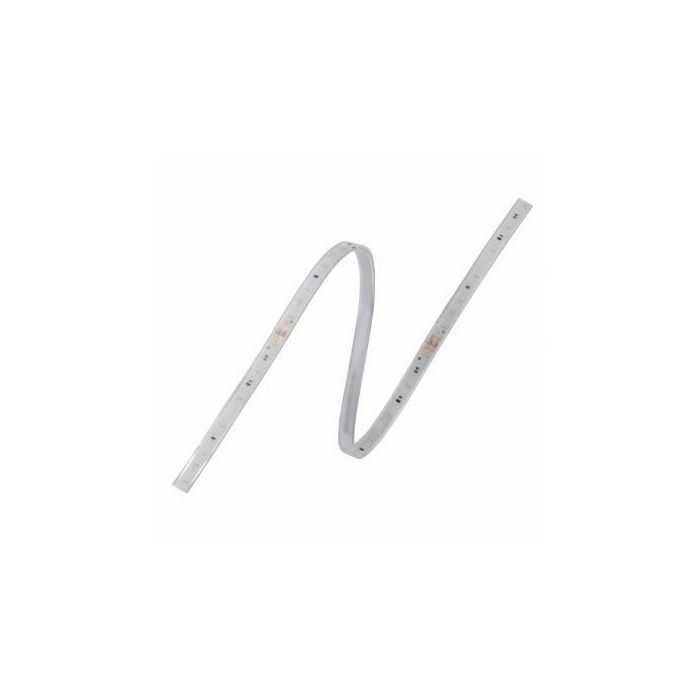

Led Vfepg1-flx-300-860 Value Flex Economy Ip66 6k 24v 4052899085077

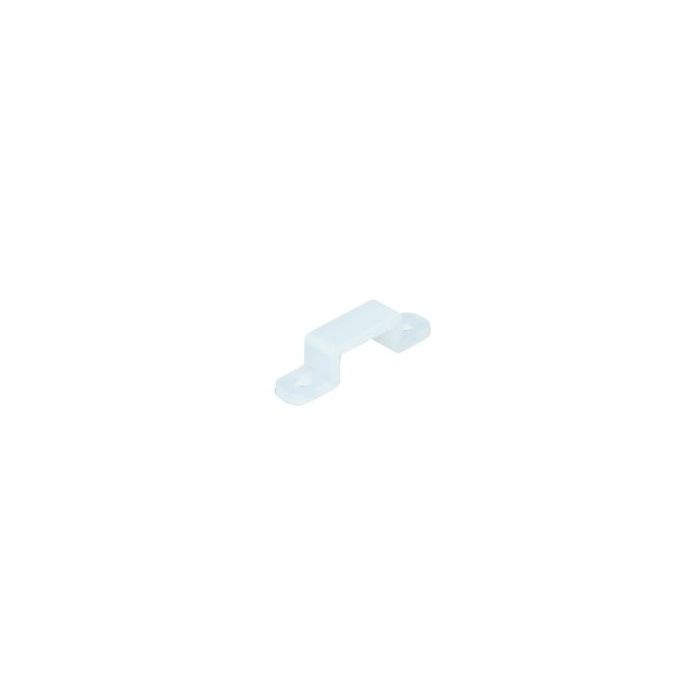

Each reel comes with 20 mounting clips, 2 end caps and 4 IP65 connectors.

The product is compatible with the end caps and mounting clips of the LINEARlight range.

Product benefits

Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
Lighter, slimer and brighter compared to predecessor thanks to lower profile

Product features

Type of protection IP66
Self-cooling
Luminous flux up to 290 lm/m
Low profile 4 mm
High colour consistency 4 SDCM
Multi-cuttable LED strip
Matches with SLIMCONNECTsystem FLEX IP54
Type of protection: IP54 (when connected with SLIMCONNECTsystem FLEX IP54)
Protection against water according to IP66

Areas of application

Wet or damp areas
Path lighting
Architecture lighting
Wall integration

Equipment / Accessories

Value Flex Track IP
SLIMCONNECTsystem FLEX IP54 connector

* For conditions and detailed information, visit www.osram.com/system-guarantee.

EAN: 4052899085077
Lifespan (L70/B50): 35000 h
Nominal voltage: 24 V
Power consumption: 25.2 W
Nominal wattage per meter: 4.2 W
Reverse Voltage: 25 V
Voltage range: 23-25 V
Colour temperature: 6000 K
Colour appearance: Daylight
Luminous flux per meter: 280 lm
Luminous flux: 1680 lm
Luminous efficacy: 67 lm/W
Beam angle: 120 Deg
Number of LEDs per module: 252
Number of LEDs per meter: 42
Width: 11 mm
Height: 4 mm
Energy consumption: 25 kWh/1000h
Energy efficiency class: A++
Product weight: 360 g
Lenght: 6051 mm
Smallest cutting point: 144 mm
Type of protection: IP66
Dimmable: Yes
High colour consistency: 4 SDCM
Warranty: 3 Years*
