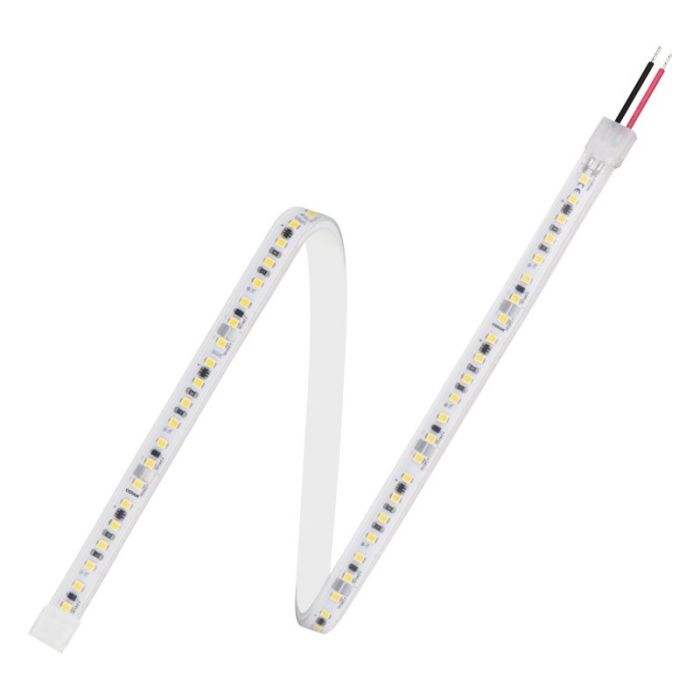

LED Strip Tape light Osram TFP600S-G1-830-05

EAN: 4062172134293

Product family benefits

• High homogeneity thanks to small LED pitch
• Pre-wired LED strip, simple and quick plug-and-play installation
• Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
• Type of protection: IP00
• Dimmable (with suitable PWM dimming methods)

Equipment / Accessories

• Simplified connection with optional matching CONNECTsystem
• Flexessories: a complete set of aluminum channels with diffusers and lenses
• Drivers and dimmers: wide selection of OPTOTRONIC 24 V DALI, DMX and BLE

Technical Data

Electrical data

• Nominal voltage: 24.0 V
• Type of current: DC
• Rated wattage: 27.50 W
• Input voltage range: 23 25 V
• Accidental reverse input voltage protection up to: 25 V

Photometrical data

• Light color LED: White
• Color rendering index Ra: 80
• Luminous efficacy: 116.4 lm/W
• Light color (designation): White

Dimensions & weight

• Length: 5000 mm
• Product weight: 278.00 g
• Cable cross-section, input side: 0.5 mmSq
• Width: 11.1 mm
• Height: 4.10 mm

Temperatures & operating conditions

• Temperature range in operation at Tc point: -25 80 DegC
• Temperature range at storage: -30 85 DegC

Additional product data

• Predecessor EAN: 4062172090988
• ID of contained light source: LS_SHZ_600350

Certificates & standards

• Standards: CE/ENEC/EAC
• Energy efficiency class of the contained light source: F

Logistical data

• Commodity code: 853951000000

Environmental information

• Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
• Date of Declaration: 11-01-2023
• Primary Article Identifier: 4062172134293
• Candidate List Substance 1: No declarable substances contained
• Declaration No. in SCIP database: No declarable substances contained
