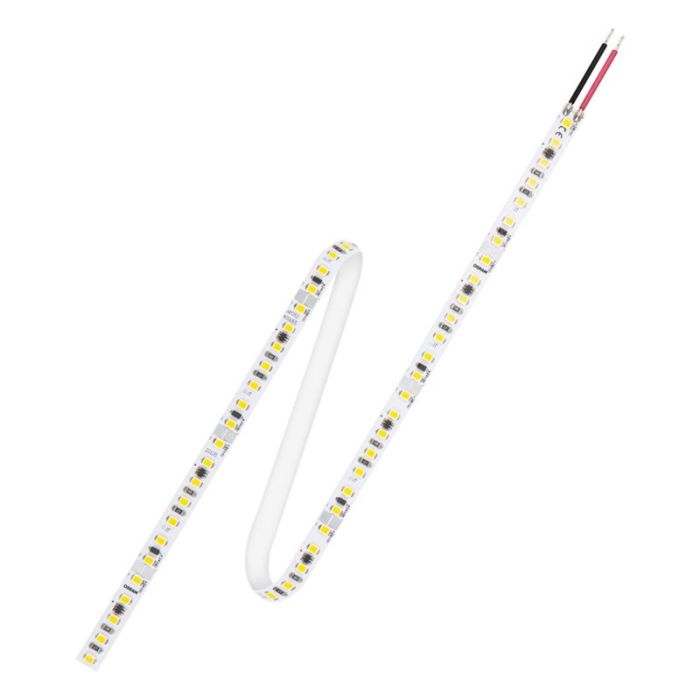

Led Tf600s-g1-830-05 Shortpitch 5m/reel 3k 24v 4062172133883

Osram Led Tf600s-g1-830-05 Shortpitch 5m/reel 3k 24v 4062172133883 LEDTF600SG1830

TF600S-G1-830-05

EAN: 4062172133883

Product family benefits
High homogeneity thanks to small LED pitch
Pre-wired LED strip, simple and quick plug-and-play installation
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
Type of protection: IP00
Dimmable (with suitable PWM dimming methods)

Areas of application
Shelf lighting for retail, shops, supermarkets
For use in architectural, shop and interior luminaires
Offices, corridors and residential interiors
Architectural Integration - e.g. coves, walls

Equipment / Accessories
Simplified connection with optional matching CONNECTsystem
Flexessories: a complete set of aluminum channels with diffusers and lenses
Drivers and dimmers: wide selection of OPTOTRONIC 24 V DALI, DMX and BLE

Technical Data

Electrical data
Nominal voltage: 24.0 V
Type of current: DC
Nominal wattage per meter: 5.5 W
Rated wattage: 27.50 W
Input voltage range: 23 25 V
Accidental reverse input voltage protection up to: 25 V

Photometrical data
Light color LED: White
Color rendering index Ra: 80
Luminous flux per meter: 660 lm
Total useful luminous flux: 3300 lm
Luminous efficacy: 120 lm/W
Standard deviation of color matching: =3 sdcm
Light color (designation): White
Color temperature: 3080 K
Rated color temperature: 3080 K

Light technical data
Starting time: < 0.5 s
Warm-up time (60 %): 0.00 s

LED module information
Number of LEDs per meter: 140
Number of LEDs per smallest unit: 7

Dimensions & weight
Length: 5000 mm
Length - smallest unit: 50.0 mm
Width: 8.00 mm
Height: 1.50 mm
Product weight: 69.00 g
Cable cross-section, input side: 0.5 mmSq

Temperatures & operating conditions
Performance temp. acc. to IEC 62717: 35 DegC
Temperature range in operation at Tc point: -25 80 DegC
Ambient temperature range: -20 +50 DegC
Temperature range at storage: -30 85 DegC

Lifespan
Rated lamp life time: 50000 h
Nominal lamp life time: 50000 h
Lumen main.fact.at end of nom.life time: 0.70
Number of switching cycles: 30000

Additional product data
Predecessor EAN: 4062172091022
ID of contained light source: LS_SHZ_600331

Capabilities
Lowest bending radius: 20 mm
Self-adhesive: Yes
With connection set: No
With end piece :No

Certificates & standards
Energy consumption: 31 kWh/1000h
Standards: CE/ENEC/EAC
Type of protection: IP00
Energy efficiency class of the contained light source: F

Logistical data
Commodity code: 853951000000

Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration: 18-04-2022
Primary Article Identifier: 4062172133883
Candidate List Substance 1: No declarable substances contained
Declaration No. in SCIP database: No declarable substances contained
