Led Tf1000s-g1-830-05 Shortpitch 5m/reel 3k 24v 4062172133982

Osram Led Tf1000s-g1-830-05 Shortpitch 5m/reel 3k 24v 4062172133982 LEDTF1000SG1830

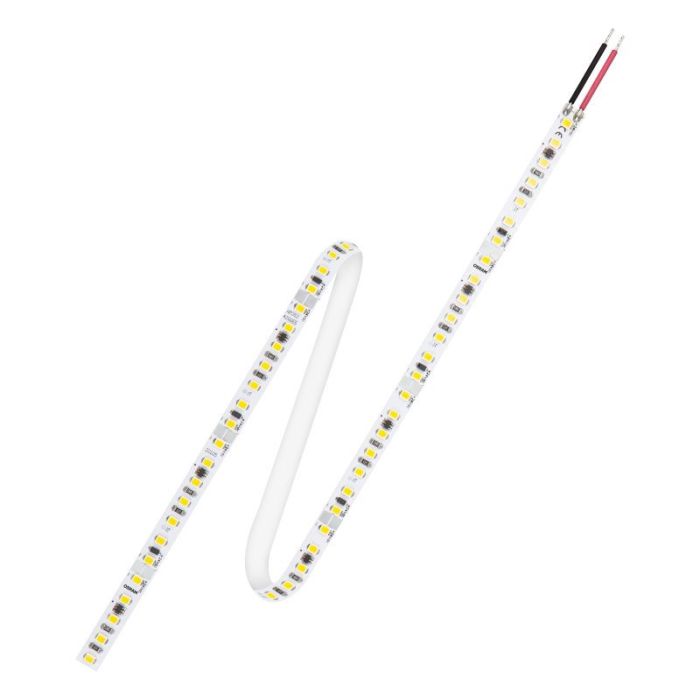

TEC Flex ShortPitch 1st Generation
VF1000S-G1-830-05

TEC Flex Generation 1 is the new portfolio of flexible, easy-to-install LED strips from OSRAM.
Our wide range of TEC Flex products offers low energy consumption with an efficacy of up to 140 lm/W as well as lower maintenance costs thanks to 50,000 hours of service life.
Create seamless lines of light with no visible shadows thanks to the extremely narrow pitch distance.

Product family benefits
High homogeneity thanks to small LED pitch
Pre-wired LED strip, simple and quick plug-and-play installation
Easy mounting on many smooth surfaces thanks to self-adhesive 3M tape at the back
Dimmable (with suitable PWM dimming methods)
Constant luminous flux over long distances due to state-of-the-art control technology
Non-protected/Protected LED strips (IP00 and IP66)
Ready-to-install LED strips with 5 cm cut points ensure high levels of design freedom
Single color bin in 3SDCM
Robust structure
Fast and reliable protection for accidential reverse power supply
Robust ESD protection
Cables soldered one side for quick and safe installation
5 Years OSRAM Guarantee

Areas of application
Shelf lighting for retail, shops, supermarkets
For use in architectural, shop and interior luminaires
Offices, corridors and residential interiors
Architectural Integration - e.g. coves, walls

Equipment / Accessories
Simplified connection with optional matching CONNECTsystem
Flexessories: a complete set of aluminum channels with diffusers and lenses
Drivers and dimmers: wide selection of OPTOTRONIC 24 V DALI, DMX and BLE

Technical information:
EAN: 4062172133982
Nominal voltage: 24.0 V
Type of current: DC
Nominal wattage per meter: 9 W
Rated wattage: 45 W
Input voltage range: 23-25 V
Accidental reverse input voltage protection up to: 25 V
Light color LED: Warm White
Color rendering index Ra: 80
Luminous flux per meter: 1130 lm
Total useful luminous flux (per reel): 5650 lm
Standard deviation of color matching:
