Led Tf1000-g1-840-05 5m/reel 4k 24v 4062172107167

Osram Led Tf1000-g1-840-05 5m/reel 4k 24v 4062172107167 LEDTF1000G1840

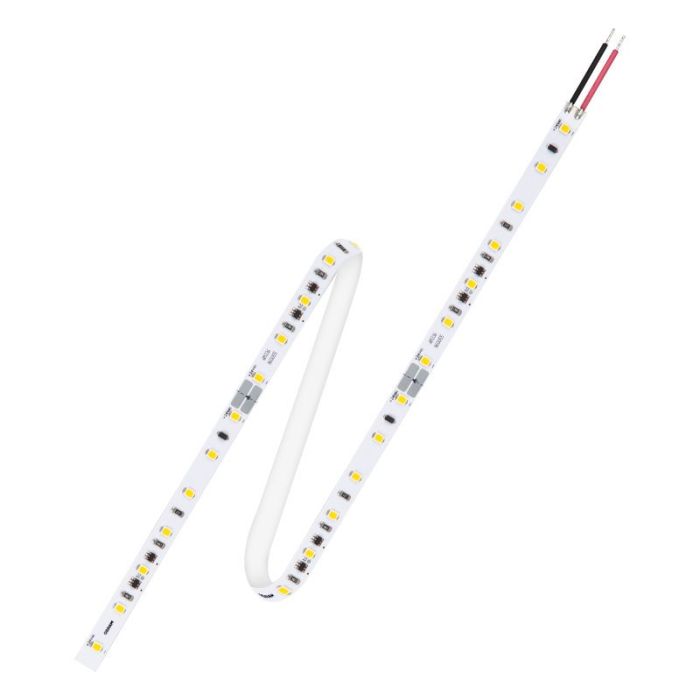

TEC Flex ShortPitch 1st Generation
VF1000-G1-840-05

TEC Flex Generation 1 is the new portfolio of flexible, easy-to-install LED strips from OSRAM.
Our wide range of TEC Flex products offers low energy consumption with an efficacy of up to 140 lm/W as well as lower maintenance costs thanks to 50,000 hours of service life.
Create seamless lines of light with no visible shadows thanks to the extremely narrow pitch distance.

Product family benefits
24V Constant Voltage Dimmable LED strip
Constant flux over length and power supply variations thanks to active IC on each single unit
Luminous flux range 300lm/m, 1000lm/m, 2000lm/m
Color temperature 2700K, 3000K, 4000K, 5000K, 6500K
Single color bin in 3SDCM
High Efficiency (up to 140lm/W) enabling energy saving also in general illumination
Fast and reliable protection for accidential reverse power supply
Robust ESD protection
Pre soldered wires with optional Connection System
Improved self-adhesive backside for easy and reliable mounting on different surfaces
Long lifetime 50.000 hours
5 Years OSRAM Guarantee
System solution in combination with OSRAM 24V Constant Voltage LED drivers, optional connectors, mounting accessories

Areas of application
General lighting
For use in architectural, shop and interior luminaires
Offices, corridors and residential interiors
Architectural Integration - e.g. coves, walls

Equipment / Accessories
Simplified connection with optional matching CONNECTsystem
Flexessories: a complete set of aluminum channels with diffusers and lenses
Drivers and dimmers: wide selection of OPTOTRONIC 24 V DALI, DMX and BLE

Technical information:
EAN: 4062172107167
Nominal voltage: 24.0 V
Type of current: DC
Nominal wattage per meter: 9.5 W
Rated wattage: 66 W
Input voltage range: 23-25 V
Accidental reverse input voltage protection up to: 25 V
Light color LED: Cool White
Color rendering index Ra: 80
Luminous flux per meter: 1210 lm
Total useful luminous flux (per reel): 6050 lm
Standard deviation of color matching:
