Led Tf1000-g1-830-05 5m/reel 3k 24v 4062172107143

Osram Led Tf1000-g1-830-05 5m/reel 3k 24v 4062172107143 LEDTF1000G1830

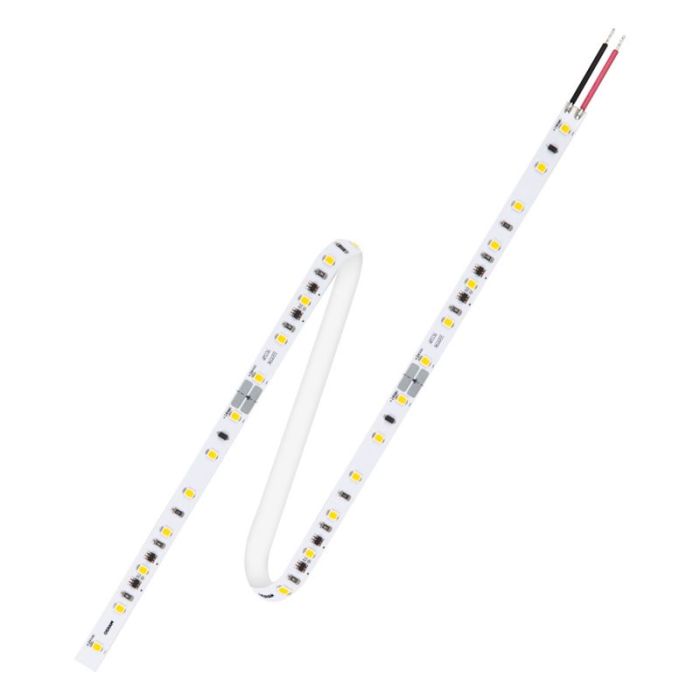

TF1000-G1-830-05 TEC Flex 1000

EAN: 4062172107143

Product family benefits
Pre-wired LED strip, simple and quick plug-and-play installation
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
Type of protection: IP00
Dimmable (with suitable PWM dimming methods)

Areas of application
General lighting
For use in architectural, shop and interior luminaires
Offices, corridors and residential interiors
Architectural Integration - e.g. coves, walls

Equipment / Accessories
Simplified connection with optional matching CONNECTsystem
Flexessories: a complete set of aluminum channels with diffusers and lenses
Drivers and dimmers: wide selection of OPTOTRONIC 24 V DALI, DMX and BLE

Electrical data
Nominal voltage: 24.0 V
Type of current: DC
Nominal wattage per meter: 9.5 W
Rated wattage: 47.50 W
Input voltage range: 23 25 V
Accidental reverse input voltage protection up to: 25 V Photometrical data
Light color LED: White
Color rendering index Ra: 80
Luminous flux per meter: 1200 lm
Total useful luminous flux: 6000 lm
Standard deviation of color matching: =3 sdcm
Light color (designation): White
Color temperature: 3080 K

Light technical data
LED pitch: 14.29 mm
Rated beam angle (half peak value): 120.00 Deg
Starting time: < 0.5 s
Warm-up time (60 %): 0.00 s

LED module information
Number of LEDs per meter: 70
Number of LEDs per smallest unit: 7

Dimensions & weight
Length: 5000 mm
Length - smallest unit: 100.0 mm
Width: 8.00 mm
Height: 1.50 mm
Product weight: 60.00 g
Cable cross-section, input side: 0.5 mmSq

Temperatures & operating conditions
Performance temp. acc. to IEC 62717: 30 DegC
Temperature range in operation at Tc point: -25 80 DegC
Ambient temperature range: -25 +50 DegC
Temperature range at storage: -30 85 DegC

Lifespan
Rated lamp life time: 50000 h
Nominal lamp life time: 50000 h
Lumen main.fact.at end of nom.life time: 0.70
Number of switching cycles: 30000
Additional product data ID of contained light source: LS_SHZ_600307

Capabilities
Dimmable: Yes
Lowest bending radius: 20 mm

Certificates & standards
Energy consumption: 53 kWh/1000h
Standards: CE/EAC/ENEC
Type of protection: IP00
Energy efficiency class of the contained light source: E

Logistical data
Commodity code: 940540399000
