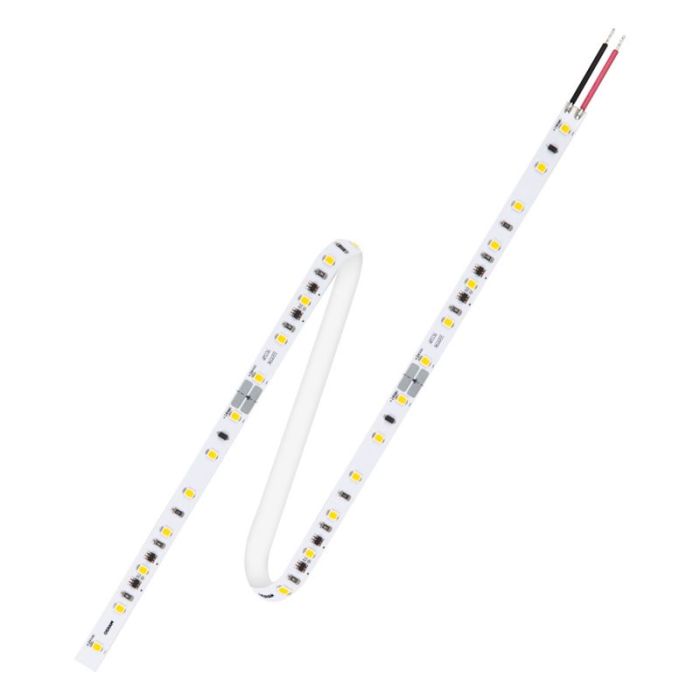

Led Tf1000-g1-827-05 Shortpitch 5m/reel 27k 24v 4062172107129

Osram Led Tf1000-g1-827-05 Shortpitch 5m/reel 27k 24v 4062172107129 LEDTF1000G1827

TF1000-G1-827-05

EAN: 4062172107129

Product family benefits
Pre-wired LED strip, simple and quick plug-and-play installation
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
Type of protection: IP00
Dimmable (with suitable PWM dimming methods)

Equipment / Accessories
Simplified connection with optional matching CONNECTsystem
Flexessories: a complete set of aluminum channels with diffusers and lenses
Drivers and dimmers: wide selection of OPTOTRONIC 24 V DALI, DMX and BLE

Technical Data

Electrical data
Nominal voltage: 24.0 V
Type of current: DC
Rated wattage: 47.50 W
Input voltage range: 23 25 V
Accidental reverse input voltage protection up to: 25 V

Photometrical data
Light color LED: White
Color rendering index Ra: 80
Light color (designation): White

Dimensions & weight
Length: 5000 mm
Product weight: 60.00 g
Height: 1.50 mm
Cable cross-section, input side: 0.5 mmSq
Width: 8.00 mm

Temperatures & operating conditions
Temperature range in operation at Tc point: -25 80 DegC
Temperature range at storage: -30 85 DegC

Additional product data
Predecessor EAN: 4052899525894
ID of contained light source: LS_SHZ_600306

Certificates & standards
Standards: CE/EAC/ENEC
Energy efficiency class of the contained light source: F

Logistical data
Commodity code: 853951000000

Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration: 11-01-2023
Primary Article Identifier: 4062172107129
Candidate List Substance 1: No declarable substances contained
Declaration No. in SCIP database: No declarable substances contained
