Led Power Feeder (connector) For 10mm Strips Ip20 Ledclc2pin10

Comus Led power feeder (connector) for 10mm strips Ip20 LEDCLC2PIN10 LEDCLC2PIN10

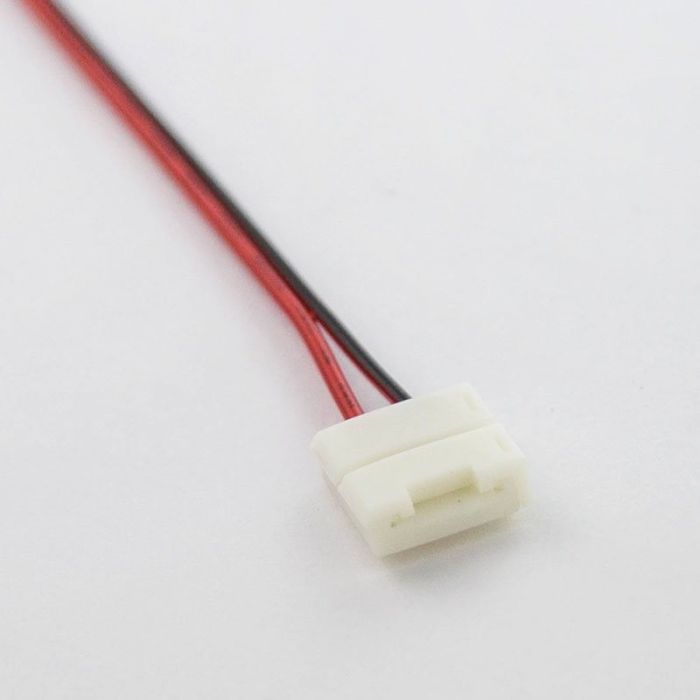

Penn Elcom 2pin quick power feeding connector with 150mm cable for 10mm wide LED strips

This quick to use connector saves time and effort compared to other connectors avaialble on the market.
It also removes the need to solder on site.

Easy to use connector. Just unclick the right upper half part of the connector, carefully push the 10mm strip inside until the PCB pad fits below the 2 pins.
Always take note to ensure correct polarity before powering the strip.

Compatible with all single colour Osram or Penn Elcom LED strips IP20 not wider than 10mm. Also compatible with strips having up 120 LED chips per meter.
This power feeder can carry a max. current of 3A (so 72W at 24V or 36W at 12V).

Fixing - we strongly recommend the use of a double adhesive tape underneath the connector or the use of silicone. This will fix the connector in place
protecting the start of the LED tape on the long run.

Suitable profiles
With cover - LEDAL01, LEDAL03, LEDAL09, LEDAL16, LEDAL20, LEDAL21, LEDAL23, LEDAL26, LEDAL27, LEDAL29, LEDAL30, LEDAL31, LEDAL32, LEDAL33, LEDAL40, LEDAL41, LEDAL42

Rated current: 3 A
Max wattage (12/24V): 36/72 W
LED strip required width: 8 mm
Cable length: 150 mm
Conductor cross section AWG: 22 (0.33 sqmm)
Cable rated insulation voltage: 300 V
Width: 21 mm
Length: 21 mm
Height: 5 mm
Quantity: sold individually
