Led Oti Dali2 30/220-240/24 1 Channel Dim 4062172329767

Osram Led Oti Dali2 30/220-240/24 1 Channel Dimable 4062172329767 LEDOTIDALI30CH1

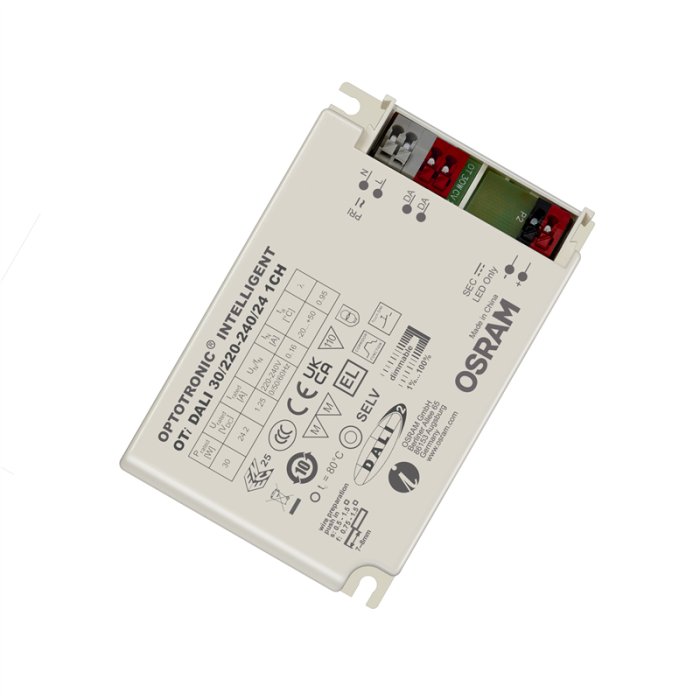

OTi DALI 30/220-240/24 1CH

EAN: 4062172329767

cable clamp B-style for independent mounting to be ordered separately

Product family features

• CV Power supplies with DALI
• Dimmable via Touch DIM
• LED driver whose output power can be shared arbitrarily
• among the 2 or 4 channels
• Dimming range: 0.1 100 %
• Line frequency: 0 Hz | 50 Hz | 60 Hz

Product family benefits

• Intelligent power matching thanks to Smart power supply
• Slim form factor for mounting on the cove or in linear luminaires
• No stroboscopic effect thanks to patented high PWM frequency management (> 2 kHz)
• Suitable for installation in emergency lighting systems according to EN 60598-2-22
• Available as single-channel or multi-channel with DT6 and DT8 in one device
• DALI message detection "LED Module failure"
• IP rating: IP20

Areas of application Cove lighting, wall washer, corridor, handrail, luminous ceilings, Suitable for use in luminaires of protection class I and II

Electrical data

• Nominal input voltage: 220 240 V
• Mains frequency: 50/60 HZ Hz
• Input voltage AC: 198 264 V
• Total harmonic distortion: < 10 %
• Power factor: ? 0.32 0.95
• Efficiency in full-load: > 88 % (at 230V, 50 Hz)
• Device power loss: 4.5 W
• Networked standby power: 3000 Hz
• Output ripple Voltage (100 Hz): < 1 %

Dimensions & weight

• Mounting hole spacing, length: 94.0 mm
• Product weight: 155.00 g
• Cable cross-section, input side: 0.5 1.5 mmSq
• Cable cross-section, output side: 0.5 1.5 mmSq
• Wire preparation length, input side: 7.0 mm
• Wire preparation length, output side: 7.0 mm
• Mounting hole spacing, width: 58.0 mm
• Length: 103.0 mm
• Width: 67.0 mm
• Height: 29.5 mm

Colors & materials Casing material: Plastic

Temperatures and operating conditions

• Ambient temperature range: -20 +45 DegC
• Maximum temperature at tc test point: 80 DegC
• Max.housing temperature in case of fault : 110 DegC
• Temperature range at storage: -40 +85 DegC
• Permitted rel. humidity during operation: 5 85 % (Maximum 56 days/year at 85%)

Lifespan ECG lifetime: 50000 h

Capabilities

• Dimmable: Yes
• Dimming interface: DALI
• Dimming range: 0 100 %
• Dimming method: Pulse Width Modulation
• Overheating protection: Automatic reversible
• Overload protection: Automatic reversible
• Short-circuit protection: Automatic reversible
• No-load proof: Yes
• Intended for no-load operation: No
• Suitable for fixtures with prot. class: I / II
• Type of connection, input side: Plug-in connection
• Type of connection, output side: Plug-in connection
• Control interface: DALI-2
• Number of channels: 1

Programming Tuner4TRONIC: Yes

Certificates & standards

• Approval marks - approval: CE / CCC / BIS / ENEC / EL / ENEC 25 / RCM / UKCA
• Standards: Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN
• 61547/Acc. to EN 61000-3-2/Acc. to EN 62384/Acc. to
• EN 60598-2-22/Acc. to EN 62386/Acc. to EN 55015
• Protection class: II
• Type of protection: IP20

Logistical data Commodity code: 850440839000

Environmental information

• Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
• Date of Declaration: 28-03-2023
• Primary Article Identifier: 4062172329767
• Candidate List Substance 1: Lead
• CAS No. of substance: 1 7439-92-1
• Safe Use Instruction: The identification of the Candidate List substance is
• sufficient to allow safe use of the article.
• Declaration No. in SCIP database: 00655979-2845-4498-83fd-fa3355affbc4
