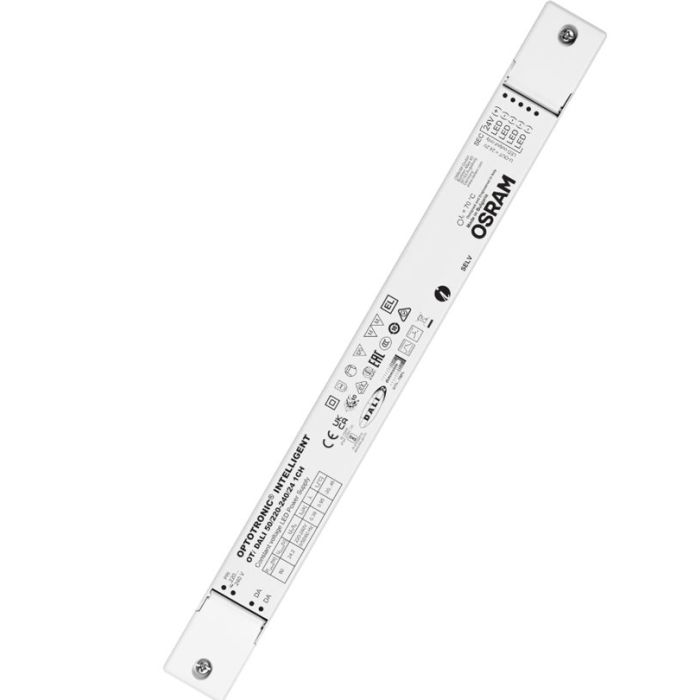

Led Oti Dali 50/220-240/24 1 Channel Dim 4062172177962

Osram Led Oti Dali 50/220-240/24 1 Channel Dim 4062172177962 LEDOTIDALI50CH1

Product benefits:
Intelligent power matching thanks to Smart power supply
Slim form factor for mounting on the cove or in linear luminaires
Reduced flicker thanks to high PWM frequency
Suitable for installation in emergency lighting systems according to EN 60598-2-22
Available as single-channel or multi-channel with DT6 and DT8 in one device
DALI message detection LED Module failure

Product features:
Dimmable via Touch DIM
Dimming range 0.1-100 %
Line frequency 0 Hz / 50 Hz / 60 Hz
Equipment / Accessories Suitable for 24 V LED modules

Areas of application:
Cove lighting, wall washer, corridor, handrail
Suitable for use in luminaires of protection class I and II

Technical data:
EAN: 4062172177962
Nominal voltage: 220-240 V
Mains frequency: 50/60 Hz
Input voltage AC: 198-264 V
Total harmonic distortion: < 5 %
Power factor: > 0.95
ECG efficiency: 92 %
Device power loss: 4.4 W
Power loss in stand-by mode: 0.5 W
Inrush current: 41 A
Max. ECG no. on circuit breaker 10 A (C): 22
Max. ECG no. on circuit breaker 10 A (B): 13
Max. ECG no. on circuit breaker 16 A (C): 36
Max. ECG no. on circuit breaker 16 A (B): 21
Max. ECG no. on circuit breaker 25 A (B): 33
Surge capability (L-N): 1 kV
Nominal output voltage: 24 V
U-OUT (working voltage): 24.2 V
Nominal output power: 50 W
Galvanic isolation: SELV
Galvanic isolation primary/secondary: 3.75 kV
Output ripple Voltage (100 Hz): < 1%
Output PWM frequency: > 2000 Hz
Input voltage DC: 176 - 276 V
Length: 346 mm
Width: 32 mm
Height: 22 mm
Mounting hole spacing, length: 300.6 mm
Product weight: 191 g
Cable cross-section, input side: 0.5-2.5 sqmm
Cable cross-section, output side: 0.2-1.5 sqmm
Wire preparation length, input side: 6 mm
Wire preparation length, output side: 5 mm
Casing material: Plastic
Ambient temperature range: -20 +45 C
Maximum temperature at tc test point: 70 C
Max.housing temperature in case of fault: 115 C
Permitted rel. humidity during operation: 5-85 %
ECG lifetime: 50000 h
Encapsulated: Yes
Dimmable: Yes
Dimming/Control interface: DALI-2
Dimming range: 0.1-100 %
Dimming method: Pulse Width Modulation
Overheating protection: Automatic reversible
Overload protection: Automatic reversible
Short-circuit protection: Automatic reversible
No-load proof: Yes
Suitable for fixtures with prot. class: I / II
Type of connection, input side: Screw terminal
Type of connection, output side: Screw terminal
Number of channels: 1
Programming via Tuner4TRONIC: Yes
Approval marks - approval: BIS / CCC / CE / EAC / EL / ENEC 10 / RCM / VDE / VDE-ENEC
Standards Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 61547/Acc. to EN 61000-3-2/Acc. to EN 62384/Acc. to EN 60598-2-22/Acc. to EN 62386/Acc. to EN 55015
Protection class: II
Temperature range at storage: -40 +85 C
IP rating: IP20
Commodity code: 850440829000
