Led Oti Dali 50/220-240/24 1-4 Channel Dim 4062172177900

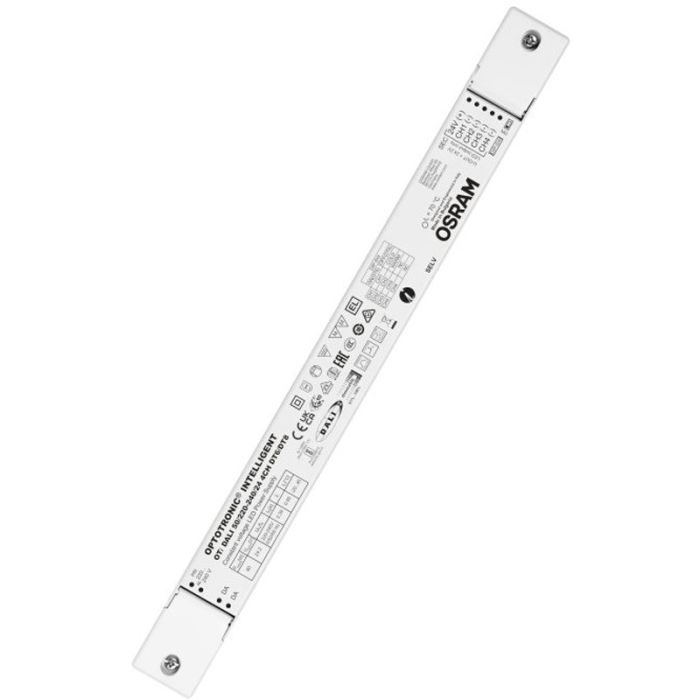

Osram Led Oti Dali 50/220-240/24 1-4 Channel Dim 4062172177900 LEDOTIDALI50CH4

24V CV Power supplies with DALI

Product benefits:

• Intelligent power matching thanks to Smart power supply
• Slim form factor for mounting on the cove or in linear luminaires
• Reduced flicker thanks to high PWM frequency
• Suitable for installation in emergency lighting systems according to EN 60598-2-22
• Available as single-channel or multi-channel with DT6 and DT8 in one device
• DALI message detection LED Module failure

Product features:

• Dimmable via Touch DIM
• From 1 to 4 channels to arbitrary distribute the LED-power
• Dimming range 0.1-100 %
• Line frequency 0 Hz / 50 Hz / 60 Hz
• Equipment / Accessories Suitable for 24 V LED modules

Areas of application:

• Cove lighting, wall washer, corridor, handrail
• Suitable for use in luminaires of protection class I and II

Technical data:
EAN: 4062172177900
Nominal voltage: 220-240 V
Mains frequency: 50/60 Hz
Input voltage AC: 198-264 V
Total harmonic distortion: < 5 %
Power factor: > 0.95
ECG efficiency: 92 %
Device power loss: 4.4 W
Power loss in stand-by mode: 0.5 W
Inrush current: 41 A
Max. ECG no. on circuit breaker 10 A (C): 22
Max. ECG no. on circuit breaker 10 A (B): 13
Max. ECG no. on circuit breaker 16 A (C): 36
Max. ECG no. on circuit breaker 16 A (B): 21
Max. ECG no. on circuit breaker 25 A (B): 33
Surge capability (L-N): 1 kV
Nominal output voltage: 24 V
U-OUT (working voltage): 24.2 V
Nominal output power: 50 W
Galvanic isolation: SELV
Galvanic isolation primary/secondary: 3.75 kV
Output ripple Voltage (100 Hz): < 1%
Output PWM frequency: > 2000 Hz
Input voltage DC: 176 - 276 V
Length: 346 mm
Width: 32 mm
Height: 22 mm
Mounting hole spacing, length: 300.6 mm
Product weight: 191 g
Cable cross-section, input side: 0.5-2.5 sqmm
Cable cross-section, output side: 0.2-1.5 sqmm
Wire preparation length, input side: 6 mm
Wire preparation length, output side: 5 mm
Casing material: Plastic
Ambient temperature range: -20 +45 C
Maximum temperature at tc test point: 70 C
Max.housing temperature in case of fault: 115 C
Permitted rel. humidity during operation: 5-85 %
ECG lifetime: 50000 h
Encapsulated: Yes
Dimmable: Yes
Dimming/Control interface: DALI-2
Dimming range: 0.1-100 %
Dimming method: Pulse Width Modulation
Overheating protection: Automatic reversible
Overload protection: Automatic reversible
Short-circuit protection: Automatic reversible
No-load proof: Yes
Suitable for fixtures with prot. class: I / II
Type of connection, input side: Screw terminal
Type of connection, output side: Screw terminal
Number of channels: 4
Programming via Tuner4TRONIC: Yes
Approval marks - approval: BIS / CCC / CE / EAC / EL / ENEC 10 / RCM / VDE / VDE-ENEC
Standards Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 61547/Acc. to EN 61000-3-2/Acc. to EN 62384/Acc. to EN 60598-2-22/Acc. to EN 62386/Acc. to EN 55015
Protection class: II
Temperature range at storage: -40 +85 C
IP rating: IP20
Commodity code: 850440829000
