Led Oti Dali 40/220-240/1a0 Nfc I 4062172115001

Osram Led Oti Dali 40/220-240/1A0 NFC I 4062172115001 LEDOTDALI401A0NFCI

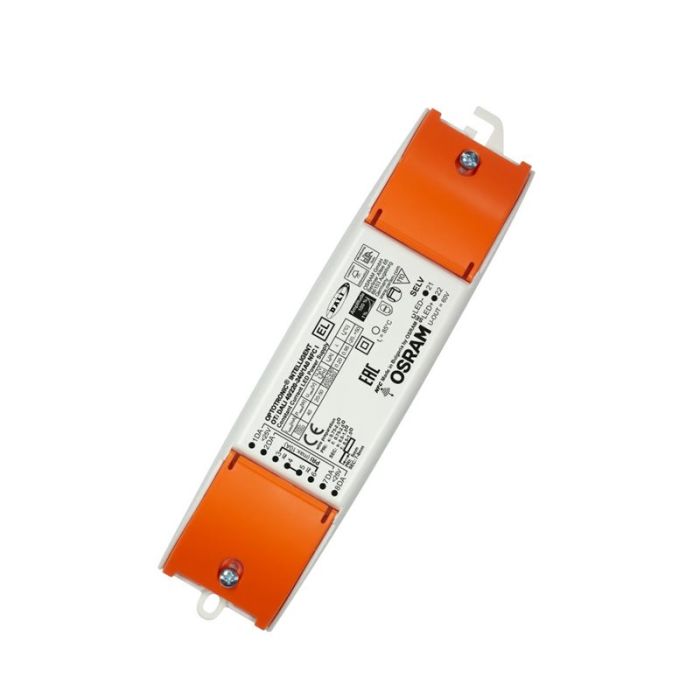

OTi DALI 40/220-240/1A0 NFC I
OPTOTRONIC Intelligent - DALI LT2 NFC - Compact constant current LED drivers

Output current can be setup via DALI (using the DALI MAGIC Usb Interface - see related products at the bottom of the description) or NFC technology (via an Android device and the Osram Tuner4Tronic paid app or via an NFC programming tool)
For more information visit this link: https://www.osram.com/ds/tools/tuner4tronic.jsp?mkt=/t4t/

Cable clamps included to allow independent installation

Product family benefits:
Versatile DALI window driver due to flexible output characteristic
Locking and unlocking of luminaire/driver data
Easy and fast output current setting via NFC
Very high efficiency
High-quality dimming of 1-100 % by amplitude dimming
DALI-2 certified incl. Parts 251, 252, 253

Areas of application:
Suitable for downlights, spotlights and LED panels
Suitable for use in luminaires with flexible current setting
Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
Suitable for indoor SELV installations
Suitable for luminaires of protection classes I and II

Technical information:
EAN: 4062172115001
Nominal input voltage: 220-240 V
Mains frequency: 0/50/60 Hz
Input voltage AC: 198-264 V
Input voltage DC: 176-276 V
Total harmonic distortion (at full load): < 10 %
Power factor: >= 0.95
ECG efficiency (typical): 91 %
Power loss in stand-by mode: < 0.15 W
Inrush current: < 20 A
Max. ECG no. on circuit breaker 10 A (B): 20
Max. ECG no. on circuit breaker 16 A (B): 30
Surge capability (L/N-Ground): 2 kV
Surge capability (L-N): 1 kV
Nominal output voltage: 20-50 V
U-OUT (working voltage): 60 V
Nominal output current: 500-1050 mA
Default output current: 700 mA
Output current tolerance: +/- 5 %
Output PSTLM: <= 1
Output SVM: <= 0.4
Output ripple current (100 Hz): < 5 %
Nominal output power: 40 W
Partial load: 20-40W
Galvanic isolation: SELV
Current set: DALI / NFC
Mounting hole spacing, length: 186.5 mm
Product weight: 170 g
Cable cross-section, input side: 0.2-2.5 sqmm
Cable cross-section, output side 0.2-1.5 sqmm
Wire preparation length, input side: 7-8 mm
Wire preparation length, output side: 8-9 mm
Height: 32.0 mm
Length: 204.0 mm
Width: 50.0 mm
Casing material: Plastic
Ambient temperature range: -20 +50 C
Maximum temperature at tc test point: 85 C
Max.housing temperature in case of fault: 110 C
Temperature range at storage: -40 +85 C
Permitted rel. humidity during operation: 5-85 %
ECG lifetime: 50000 / 100000 h
Encapsulated: No
Suitable for through-looping: Yes
Dimmable: Yes
Dimming interface: DALI-2
Dimming range: 1-100 %
Dimming method: Amplitude Modulation
Overheating protection: Automatic reversible
Overload protection: Automatic reversible
Short-circuit protection: Automatic reversible
No-load proof: Yes
Max. cable length to lamp/LED module: 2.0 m
Suitable for fixtures with prot. class: I / II
Type of connection, input side: Screw terminal
Type of connection, output side: Push terminal
Number of channels: 1
Programming interface: DALI, NFC
Constant lumen function: Programmable
Tuner4TRONIC Field App: Yes
Box programming: Yes
Programming device: DALI / NFC
Tuner4TRONIC: Yes
DALI Settings: Yes
OEM Key: No
Configuration Lock: Yes
DALI-2 Luminaire Data: Yes
Emergency Mode: Yes
Dim to Dark: Yes
Soft Switch Off: Yes
Driver Guard: Yes
Constant Lumen: Yes
Lamp Operating Time: Yes
Approval marks - approval: CE / EL / DALI-2 / EAC
Standards: Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 55015/Acc. to EN 61547/Acc. to EN 61000-3-2/Acc. to EN 62384/Acc. to EN 62386/Acc. to IEC 62386-101:Ed2/Acc. to IEC 62386-102:Ed2/Acc. to IEC 62386-207:Ed1
Protection class: II
Type of protection: IP20
Commodity code: 850440829000
