Osram Led Oti Dali 25/220-240/700 Nfc Lp 4062172227698

Osram Led Oti Dali 25/220-240/700 Nfc Lp 4062172227698 LEDOTIDALI25NFCLP

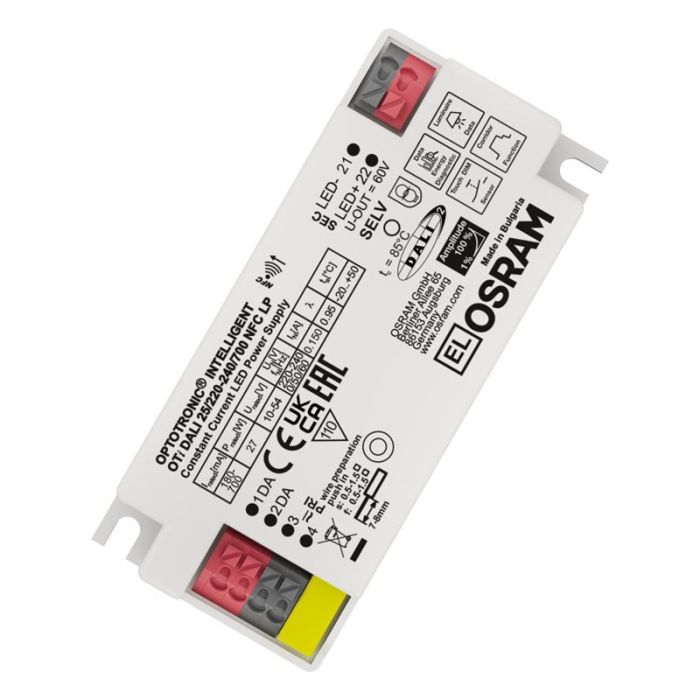

OTi DALI 25/220...240/700 NFC LP EAN: 4062172306218

The Osram Led Oti Dali 25/220-240/700 Nfc Lp 4062172227698 LEDOTIDALI25NFCLP is a versatile and high-quality DALI-2 certified LED driver with a wide range of features. It is ideal for use in downlights, spotlights, and LED panels, and can also be used in emergency lighting systems and indoor SELV installations.

The OTi DALI 25/220...240/700 NFC LP features a small housing for flexible luminaire designs, a versatile DALI window driver with a flexible output characteristic, and easy and fast output current setting via NFC. It also has a very high efficiency, high-quality dimming of 1-100% by amplitude dimming, and is DALI-2 certified including Parts 251, 252, and 253.

Other features of the OTi DALI 25/220...240/700 NFC LP include:

• Three-level Corridor function for easy use in corridors and restrooms
• Touch DIM application for easy control via pushbutton or sensor
• Suitable for installation in emergency lighting systems according to IEC 61347-2-13, appendix J
• Suitable for indoor SELV installations
• Suitable for luminaires of protection classes I and II
• German innovation awards 2019 winner
• DALI 2 certified
• SELV, short circuit proof

The Osram Led Oti Dali 25/220-240/700 Nfc Lp 4062172227698 LEDOTIDALI25NFCLP is a versatile and high-quality DALI-2 certified LED driver that is ideal for a wide range of applications.

Product family benefits

• Small housing for flexible luminaire designs
• Versatile DALI window driver due to flexible output characteristic
• Easy and fast output current setting via NFC
• Very high efficiency
• High-quality dimming of 1 100 % by amplitude dimming
• DALI-2 certified incl. Parts 251, 252, 253
• Easy to use in corridors and restrooms because of three-level Corridor function
• Touch DIM application: easy to control via pushbutton or sensor

Areas of application

• Suitable for downlights, spotlights and LED panels
• Suitable for use in luminaires with flexible current setting
• Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
• Suitable for indoor SELV installations
• Suitable for luminaires of protection classes I and II
• German innovation awards 2019 winner DALI 2 Logo black and white 540301_SELV, short circuit proof

Technical Data

• Nominal input voltage: 220 240 V
• Mains frequency: 0,50,60 Hz
• Input voltage AC: 198 264 V
• Input voltage DC: 176 276 V
• Total harmonic distortion: < 10 %
• Power factor ?: = 0.95
• Efficiency in full-load: 88 %
• Device power loss: -
• Inrush current: 20 A
• Max. ECG no. on circuit breaker 10 A (B): 50
• Max. ECG no. on circuit breaker 16 A (B): 80
• Surge capability (L/N-Ground): 2 kV
• Surge capability (L-N): 1 kV
• Nominal output voltage: 10 54 V
• U-OUT (working voltage): 60 V
• Nominal output current: 180 700 mA
• Default output current: 500 mA
• Galvanic isolation primary/secondary: SELV
• Galvanic isolation DALI/mains: Basic
• Galvanic isolation DALI/output: SELV
• Current set: DALI / NFC
• Output current tolerance: +/-3 %
• Output ripple current (100 Hz): < 3 %
• Output PSTLM: =1
• Output SVM: =0.4
• Nominal output power: 27 W
• Maximum output power: 27 W
• Networked standby power: 0.13 W

Dimensions & weight

• Mounting hole spacing, length: 88.0 mm
• Mounting hole spacing, width: 34.0 mm
• Product weight: 120.00 g
• Cable cross-section, input side: 0.5 1.5 mmSq
• Cable cross-section, output side: 0.5 1.5 mmSq
• Wire preparation length, input side: 7 8 mm
• Wire preparation length, output side: 7 8 mm
• Length: 97.0 mm
• Width: 42.5 mm
• Height: 22.0 mm
• Casing material: Plastic

Temperatures & operating conditions

• Ambient temperature range:-20 +50 DegC
• Maximum temperature at tc test point: 85 DegC
• Max.housing temperature in case of fault: 110 DegC
• Temperature range at storage: -40 +85 DegC
• Permitted rel. humidity during operation: 5 85 %
• ECG lifetime: 50000 / 100000 h
• Encapsulated: No

Capabilities

• Dimmable: Yes
• Dimming interface: DALI-2 / Touch DIM / Touch DIM Sensor
• Dimming range: 1 100 %
• Dimming method: Amplitude Modulation
• Overheating protection: Automatic reversible
• Overload protection: Automatic reversible
• Short-circuit protection: Automatic reversible
• No-load proof: Yes
• Intended for no-load operation: No
• Max. cable length to lamp/LED module: 2.0 m
• Suitable for fixtures with prot. class: I / II
• Type of connection, input side: Push terminal
• Type of connection, output side: Push terminal
• Programming interface: DALI, NFC
• Number of channels: 1
• Suitable for emergency lighting: Yes
• DALI-2 Diagnostic Data: Yes
• DALI-2 Energy Data: Yes
• Constant lumen function: Programmable
• Control interface: DALI-2
• Suitable for through-wiring: No
• Detection angle (Light sensor):

Programming

• Tuner4TRONIC: Yes
• Tuner4TRONIC Field App: Yes
• Programming device: DALI / NFC
• Box programming: Yes

Programmable features

• Configuration Lock: Yes
• OEM Key: No
• DALI-2 Luminaire Data: Yes
• Emergency Mode: Yes
• TouchDIM + Sensor: Yes
• Dim to Dark: Yes
• Soft Switch Off: Yes
• Driver Guard: Yes
• DALI Settings: Yes
• Corridor Functionality: Yes
• Operating Current: Yes
• Constant Lumen: Yes
• Lamp Operating Time: Yes

Certificates & standards

• Approval marks - approval: CE / UKCA / EL / DALI-2 / EAC
• Standards: Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 55015/Acc. to EN 61547/Acc. to EN 61000-3-2/Acc. to EN 62384/Acc. to EN 62386/Acc. to IEC 62386-101:Ed2/Acc. to IEC 62386-102:Ed2/Acc. to IEC 62386-207:Ed1
• Protection class: II
• Type of protection: IP20
• Commodity code: 850440829000

Environmental information

• Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
• Date of Declaration: 18-10-2022
• Primary Article Identifier: 4062172227698
• Candidate List Substance 1: Lead
• CAS No. of substance 1: 7439-92-1
• Safe Use Instruction: The identification of the Candidate List substance is sufficient to allow safe use of the article.
Declaration No. in SCIP database: 5a4782de-8f35-4477-a559-d76cc4f5ba2c
