Led Oti Dali 25/220-240/700 Nfc 4062172017909

Osram Led Oti Dali 25/220-240/700 NFC 4062172017909 LEDOTDALI25700NFC

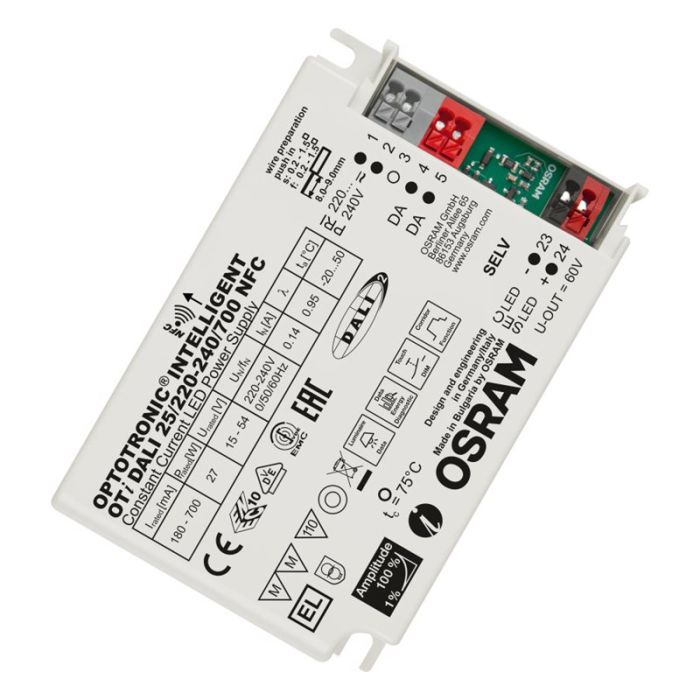

OTi DALI 25/220 240/700 NFC
OPTOTRONIC Intelligent - DALI NFC | Compact constant current LED driver - Dimmable
EAN: 4062172017909

Optional orange cable clamp B-style for independent mounting to be ordered separately

Product family benefits

• Versatile DALI window driver due to flexible output characteristic
• Locking and unlocking of luminaire/driver data
• Advanced luminaire/driver data (power, energy, operating hours ) for analytics
• DALI-2 certified incl. Parts 251, 252, 253
• Easy and fast output current setting via NFC
• Very high efficiency
• High-quality dimming of 1 100 % by amplitude dimming

Versatile scope of application due to OSRAM DALI Technology:

• Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13,appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable
• Feedback of power consumption and operating hours (Fit for SMART GRID)
• Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting

Areas of application

• Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
• Suitable for use in luminaires with flexible current setting
• Suitable for indoor SELV installations
• Suitable for luminaires of protection classes I and II
• Suitable for downlights, spotlights and LED panels
• Installation via Cable Clamp Kit possible (depending on version of product)

Electrical data
Nominal input voltage: 220 240 V
Mains frequency: 0/50/60 Hz
Input voltage AC: 198 264 V
Input voltage DC: 176 276 V
Total harmonic distortion: < 10 %
Power factor ?: > 0.95
Efficiency in full-load: 88 %
Device power loss: -
Networked standby power: 0.15 W
Inrush current: 15 A
Max. ECG no. on circuit breaker 10 A (B): 18
Max. ECG no. on circuit breaker 10 A (C): -
Max. ECG no. on circuit breaker 16 A (B): 28
Max. ECG no. on circuit breaker 16 A (C): -
Max. ECG no. on circuit breaker 25 A (B): -
Surge capability (L/N-Ground): 2 kV
Surge capability (L-N): 1 kV
Nominal output voltage: 15 54 V
U-OUT (working voltage): 60 V
Nominal output current: 180 700 mA
Default output current: 500 mA
Output current tolerance: +/-3 %
Output ripple current (100 Hz): < 3 %
Output PSTLM: =1
Output SVM: =0.4
Nominal output power: 27 W
Maximum output power: 27 W
Galvanic isolation DALI/mains: SELV
Current set: DALI / NFC
Galvanic isolation DALI/output: SELV
Galvanic isolation primary/secondary: SELV

Dimensions & weight
Mounting hole spacing, length: 94.0 mm
Mounting hole spacing, width: 58.0 mm
Product weight: 145.00 g
Cable cross-section, input side: 0.2 1.5 mmSq
Cable cross-section, output side: 0.2 1.5 mmSq
Wire preparation length, input side: 8.0 9.0 mm
Wire preparation length, output side: 8.0 9.0 mm
Width: 67.0 mm
Height: 29.5 mm
Length: 103.0 mm

Colors & materials
Casing material: Plastic

Temperatures & operating conditions
Ambient temperature range: -20 +50 DegC
Maximum temperature at tc test point: 75 DegC
Max.housing temperature in case of fault: 110 DegC
Temperature range at storage: -40 +85 DegC
Permitted rel. humidity during operation: 5 85 %

Lifespan
ECG lifetime: 50000 / 100000 h

Additional product data
Predecessor EAN: 4052899548213

Capabilities
Dimmable: Yes
Dimming interface: DALI / Touch DIM / Touch DIM Sensor
Dimming range: 1 100 %
Dimming method: Amplitude Modulation
Overheating protection: Automatic reversible
Overload protection: Automatic reversible
Short-circuit protection: Automatic reversible
No-load proof: Yes
Intended for no-load operation: No
Max. cable length to lamp/LED module: 2.0 m
Suitable for fixtures with prot. class: I / II
Type of connection, input side: Push terminal
Type of connection, output side: Push terminal
Constant lumen function: Programmable
Number of channels: 1
Suitable for emergency lighting: Yes
DALI-2 Diagnostic Data: Yes
DALI-2 Energy Data: Yes
Programming interface: DALI, NFC

Programming
Box programming: Yes
Tuner4TRONIC: Yes
Programming device: DALI / NFC
Tuner4TRONIC Field App: Yes

Programmable features
TouchDIM + Sensor: Yes
DALI Settings: Yes
Emergency Mode: Yes
DALI-2 Luminaire Data: Yes
Configuration Lock: Yes
OEM Key: No
Constant Lumen: Yes
Lamp Operating Time: Yes
Soft Switch Off: Yes
Dim to Dark: Yes
Driver Guard: Yes

Certificates & standards
Approval marks - approval: CE / EL / ENEC 10 / VDE / VDE-EMC / DALI-2 / EAC / MM
Standards: Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 55015/Acc. to EN 61547/Acc. to EN 61000-3-2/Acc. to EN 62384/Acc. to EN 62386/Acc. to IEC 62386-101:Ed2/Acc. to IEC 62386-102:Ed2/Acc. to IEC 62386-207:Ed1
Protection class: II
Type of protection: IP20
