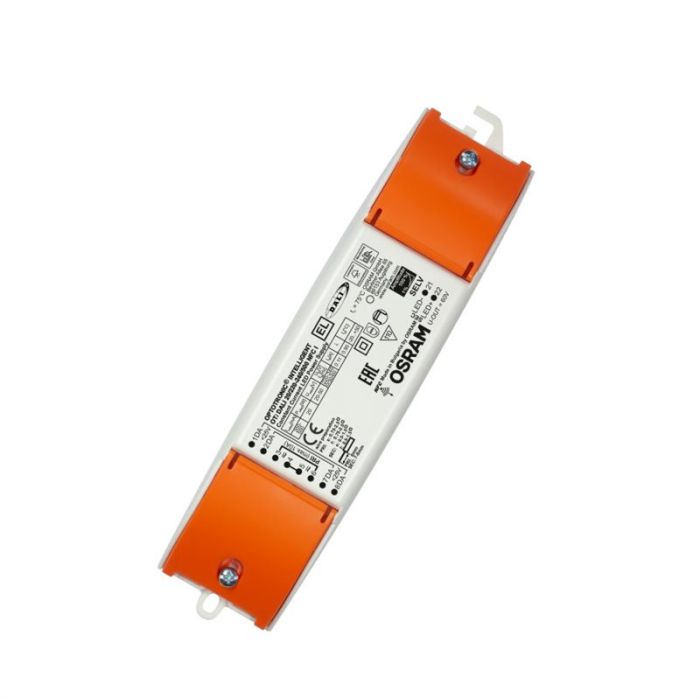

Led Oti Dali 20/220-240/500 Nfc I 4062172114967

Osram Led Oti Dali 20/220-240/500 NFC I 4062172114967 LEDOTDALI20500NFC

OTi DALI 20/220-240/500 NFC I
OPTOTRONIC Intelligent - DALI LT2 NFC - Compact constant current LED drivers

Output current can be setup via DALI (using the DALI MAGIC Usb Interface - see related products at the bottom of the description) or NFC technology (via an Android device and the Osram Tuner4Tronic paid app or via an NFC programming tool)
For more information visit this link: https://www.osram.com/ds/tools/tuner4tronic.jsp?mkt=/t4t/

Cable clamps included to allow independent installation

Product family benefits
Versatile DALI window driver due to flexible output characteristic
Locking and unlocking of luminaire/driver data
Easy and fast output current setting via NFC
Very high efficiency
High-quality dimming of 1-100 % by amplitude dimming
DALI-2 certified incl. Parts 251, 252, 253

Areas of application
Suitable for downlights, spotlights and LED panels
Suitable for use in luminaires with flexible current setting
Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
Suitable for indoor SELV installations
Suitable for luminaires of protection classes I and II

Technical information

EAN: 4062172114967
Nominal input voltage: 220-240 V
Mains frequency: 0/50/60 Hz
Input voltage AC: 198-264 V
Input voltage DC: 176-276 V
Total harmonic distortion (at full load): < 10 %
Power factor: >= 0.95
ECG efficiency (typical): 88 %
Device power loss: W
Power loss in stand-by mode: < 0.15 W
Inrush current: < 20 A
Max. ECG no. on circuit breaker 10 A (B): 20
Max. ECG no. on circuit breaker 16 A (B): 30
Surge capability (L/N-Ground): 2 kV
Surge capability (L-N): 1 kV
Nominal output voltage: 20-50 V
U-OUT (working voltage): 60 V
Nominal output current: 200-500 mA
Default output current: 350 mA
Output current tolerance: +/- 5 %
Output PSTLM:
