Osram Led Oti Dali 15/220-240/1a0 Nfc Twi 4062172211543

Osram Led Oti Dali 15/220-240/1A0 NFC TWI (orange cable clamps included) 4062172211543 LEDOTIDALI15NFCTWI

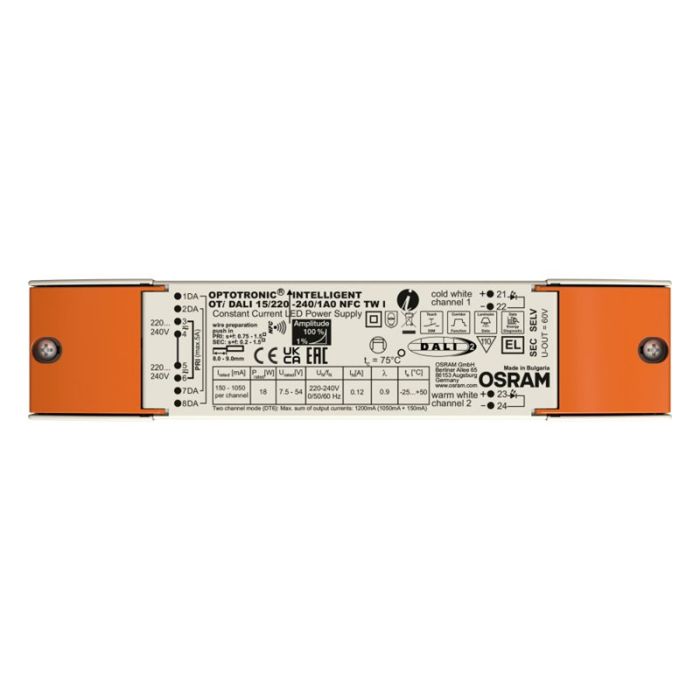

OTi DALI 15/220 240/1A0 NFC TW I Osram Led Driver

EAN: 4052899631625

Product family benefits

• Control of standard white or Tunable White light acc. DALI device type 8 (DT8)
• TouchDIM Tunable White integrated for use without additional LMS
• Fully programmable via T4T software (NFC, DALI Interface)
• Lifetime: up to 100,000 h (temperature at Tc = 65 DegC, max. 10 % failure rate)
• High-quality dimming of 1 100 % by amplitude dimming
• High quality of light thanks to
• Efficiency in full-load: 85 %
• Inrush current: 17 A
• Max. ECG no. on circuit breaker 10 A (C): -
• Max. ECG no. on circuit breaker 10 A (B): 27
• Max. ECG no. on circuit breaker 16 A (C): -
• Max. ECG no. on circuit breaker 16 A (B): 43
• Max. ECG no. on circuit breaker 25 A (B):-
• Surge capability (L/N-Ground): 2 kV
• Surge capability (L-N): 1 kV
• Nominal output voltage: 7.5 54 V
• U-OUT (working voltage): 60 V
• Nominal output current: 150 1050 mA
• Default output current, 2-channel DT6:300 mA
• Default output current, TW DT8: 300 mA
• Output current tolerance: +/-3 %
• Output ripple current (100 Hz):< 2 %
• Output PSTLM:
