Led Oti Dali 100/220-240/24 1-4 Channel Dim 4062172119191

Osram Led Oti Dali 100/220-240/24 1-4 Channel Dim 4062172119191 LEDOTIDALI100

CV Power supplies with DALI

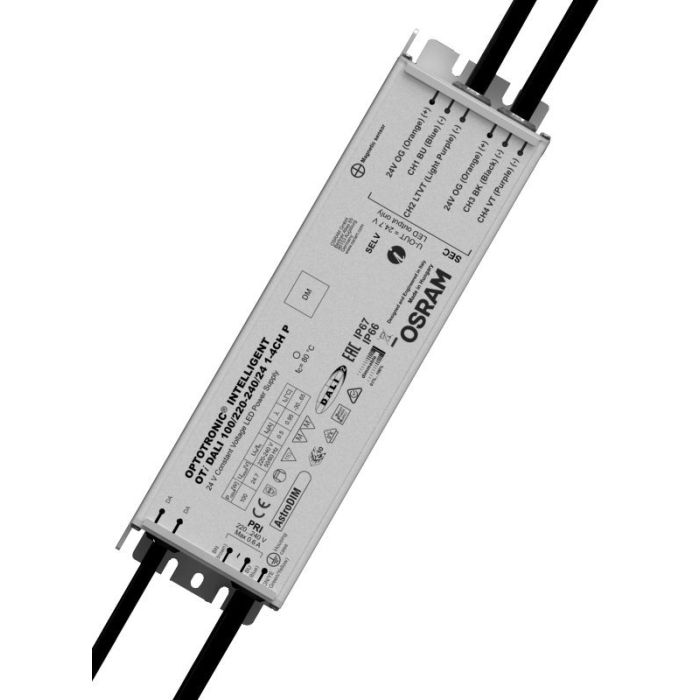

OTi DALI 100/220-240/24 1-4 CH P

100W power can be ARBITRARILY distributed to 1 channel or across the 4 channels!

The OSRAM constant voltage power supplies with DALI, enable you to maximize any designs potential and enjoy flicker-free light due to a high PWM frequency, dimmable to between 0.1 and 100 % with TouchDIM. Use from 1 to 4 channels and benefit from DALI message detection of LED module failure.

The slender form of these drivers makes them ideal for use when you need to install LED lighting in tight spaces or linear luminaires, for example in coves, corridors and handrails, or for wall washing. They are suitable for 24 V LED modules and for use with luminaires of protection classes I and II.

Product family benefits:

Long lasting and high reliability
From 1 to 4 channels to arbitrarily distribute the power
Suitable for installation under sunlight
IP66/IP67 Salt mist resistant and DC functionality
AstroDim functionality for automatic dimming and turn on/off

Product benefits:

Long lasting and high reliability.
From 1 to 4 channels to arbitrarily distribute the power.
Suitable for installation under sunlight.
IP66/IP67 Salt mist resistant and DC functionality.
AstroDim functionality for automatic turn on/off.

Areas of Application:

Public squares and architecture lighting
In building facades, luminous signage
Suitable for indoor and outdoor SELV installations
Suitable for use in luminaires of protection class

Technical Data:

EAN: 4062172119191
Nominal output power: 0-100 W*
Min load per channel: 9.5W
Device power loss (Full load, 230 Vac, 50 Hz): 7 W
Mains frequency: 50/60 Hz
Power loss in stand-by mode: 10000
Expected ECG lifetime (Ta = 60C, Tc = 75C and 10% failure rate, always ON): 30000 h
Expected ECG lifetime (Ta = 60C, Tc = 75C and 10% failure rate, 14 h ON and 10 h stand-by per day): 50000 h
Warranty (10% cumulated failure): 5 years
Standards: Acc. to EN 61347-2-13/Acc. to EN 61547/Acc. to EN 55015/Acc. to EN 61000-3-2/Acc. to EN 61000-3-3/Acc. to EN 61347-1/Acc. to EN 62493
Approval marks - approval: CE / EAC / ENEC 10 / RCM / VDE / VDE-EMC

*Power factor, harmonics and EMI guaranteed between 38-100 W
**See "OTi Dali cable lengths parameters" file in download section for detailed information
