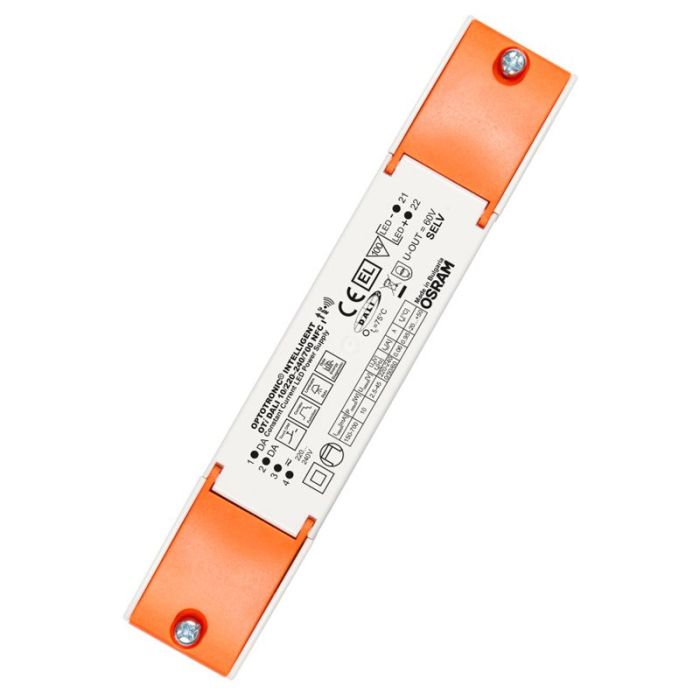

Led Oti Dali 10/220-240/700 Nfc 4062172151252

Osram Led Oti Dali 10/220-240/700 NFC 4062172151252 LEDOTDALI10700NFCI

EAN: 4062172151252

Product family benefits
Versatile DALI window driver due to flexible output characteristic
Locking and unlocking of luminaire/driver data
Easy and fast output current setting via NFC
Very high efficiency
High-quality dimming of 1 100 % by amplitude dimming
DALI-2 certified incl. Parts 251, 252, 253

Areas of application
Suitable for downlights, spotlights and LED panels
Suitable for use in luminaires with flexible current setting
Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
Suitable for indoor SELV installations
Suitable for luminaires of protection classes I and II

Electrical data
Nominal input voltage: 220 240 V
Mains frequency: 0/50/60 Hz
Input voltage AC: 198 264 V
Input voltage DC: 176 276 V
Total harmonic distortion: 15 %
Power factor ?: > 0.98/> 0.94
Efficiency in full-load: 82 %
Device power loss: 3.5 W
Networked standby power: =0.15 W
Inrush current: < 5 A
Max. ECG no. on circuit breaker 10 A (B): 80
Max. ECG no. on circuit breaker 16 A (B): 130
Surge capability (L/N-Ground): 2 kV
Surge capability (L-N): 1 kV
Nominal output voltage: 2.5 45 V
U-OUT (working voltage): 60 V
Nominal output current: 150 700 mA
Default output current: 350 mA
Output current tolerance: +/-3 %
Output ripple current (100 Hz): < 2 %
Output PSTLM: =1
Output SVM: =0.4
Nominal output power: 10 W
Maximum output power: 10 W
Galvanic isolation: SELV
Current set: DALI / NFC

Dimensions & weight
Mounting hole spacing, length: 132.0 mm
Product weight: 76.00 g
Cable cross-section, input side: 0.2 1.5 mmSq
Cable cross-section, output side: 0.2 1.5 mmSq
Wire preparation length, input side: 8.0 9.1 mm
Wire preparation length, output side: 8.0 9.1 mm
Height: 22.0 mm
Width: 30.0 mm
Length: 166.0 mm

Colors & materials
Casing material: Plastic

Temperatures & operating conditions
Ambient temperature range: -25 +50 DegC
Maximum temperature at tc test point: 75 DegC
Max.housing temperature in case of fault: 110 DegC

Lifespan
ECG lifetime: 50000 / 100000 h

Capabilities
Dimmable: Yes
Dimming interface: DALI-2 / Touch DIM / Touch DIM Sensor
Dimming range: 1 100 %
Dimming method: Amplitude Modulation
Overheating protection: Automatic reversible
Overload protection: Automatic reversible
Short-circuit protection: Automatic reversible
No-load proof: Yes
Intended for no-load operation: No
Max. cable length to lamp/LED module: 2.0 m
Suitable for fixtures with prot. class: I / II
Type of connection, input side: Push terminal
Type of connection, output side: Push terminal
DALI-2 Diagnostic Data: Yes
Suitable for emergency lighting: Yes
DALI-2 Energy Data: Yes
Number of channels: 1
Programming interface: DALI, NFC
Constant lumen function: Programmable

Programming
Box programming: Yes
Programming device: DALI / NFC
Tuner4TRONIC: Yes
Tuner4TRONIC Field App: No

Programmable features
Emergency Mode: Yes
DALI-2 Luminaire Data: Yes
Configuration Lock: Yes
OEM Key: No
DALI Settings: Yes
Lamp Operating Time: Yes
Constant Lumen: Yes
Driver Guard: Yes
Soft Switch Off: Yes
Dim to Dark: Yes

Certificates & standards
Approval marks - approval: ENEC / VDE-EMC / EL / CE / DALI-2
Standards: Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 55015/Acc. to IEC 61547/Acc. to IEC 61000-3-2/Acc. to IEC 62384/Acc. to IEC 62386/Acc. to IEC 62386-101:Ed2/Acc. to IEC 62386-102:Ed2/Acc. to IEC 62386-207:Ed1
Protection class: II
Type of protection: IP20

Logistical data
Commodity code: 850440829000
