Led Lr-rgb Single Zone Rgb Remote&receiver Blister Pack Lr-rgb

Teucer Led Lr-rgb Single Zone RGB Remote&Receiver Blister Pack LR-RGB LEDLRRGB

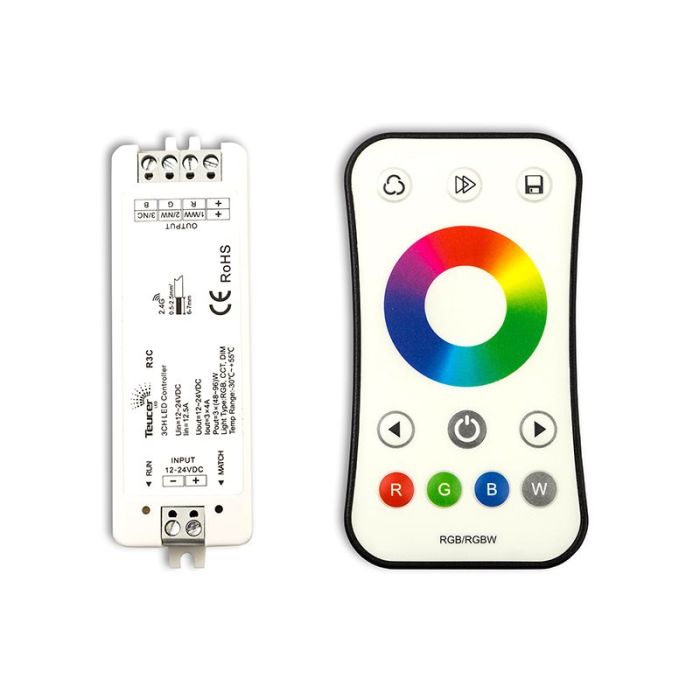

The Teucer RGB remote KIT allows you to control one zone with RGB flex.
The RGB version comes with a touch colour wheel for different colour options and various effects, as well as dimming to a low 10% capacity.

One receiver (R3c) is provided together with the remote to offer a complete and reliable solution.
When expanding your lighting, always try and use a signal repeater (LEDPRRGBN), where possible.
If your installation requires several RF receivers, ensure the ?master? receiver is positioned in the middle.
Please note that one battery CR2032s (included) powers the remote.

Manufacturers code (remote): LR-RGB/RGBW
Manufacturers code (receiver): R3C
Input voltage (receiver): 12/24 V
Output voltage (receiver): 12/24 V
Battery type (remote): CR2032
Output wattage: max. 144/288 W
Number of output channels: 3
Output current per channel: max 4 A
IP rating (remote): 20
IP rating (receiver): 20
Dimmable (receiver): Yes
Dimming range: 10-100 %
Dimming output pathern (receiver): PWM
Number of controllable zones: 1
Number of circuits: 1 circuit
Current per circuit: 12 A
Fixture (receiver): Double side tape
Length (receiver): 97 mm
Width (receiver): 33 mm
Height (receiver): 18 mm
Max RF range: 30 m
Recommended RF range: 10 m
Warranty: 3 Years
Radio Frequency: 2.4 GHz
