Led Lf800s-g5-935-10 L2 Shortpitch 10m/reel 35k 24v 4062172169790

Osram Led Lf800s-g5-935-10 L2 Shortpitch 10m/reel 35k 24v 4062172169790 LEDLF800SG5935

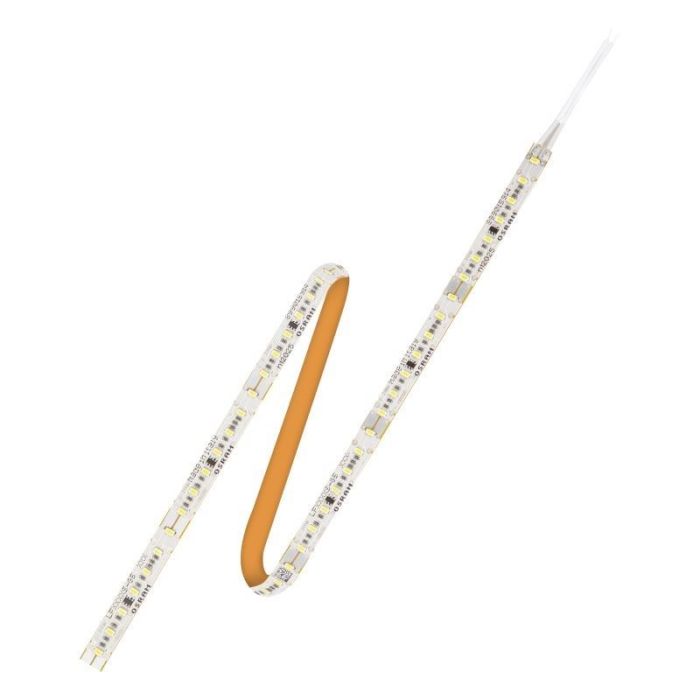

LINEARlight Flex ShortPitch 5th Generation
LF800S-G5-935-10

Experience an unprecedented level of diffuse light and dimming performance - with LINEARlight Flex Uniformity from OSRAM, made in Europe, Italy.
The new series is the perfect choice for harmonious indoor and outdoor designs and artistically emphasizes shapes and geometries in order to bring out the special charm of architecture.
Arranged in sequence these cutting-edge LED strips ensure seamless transitions in multiple contexts and applications.

LED modules can be integrated conveniently even into flat profiles in order to illuminate indoor and outdoor areas homogeneously and without visible light points.
In retail shops, offices, hospitality, museums and various other settings - Even in environments requiring dimmed light, you can rely on the superior quality and durability of LINEARlight Flex Uniformity - with a guarantee included.
Combined with OPTOTRONIC LED drivers, these new LED strips form a system which has been specially designed and tested by OSRAM.
This ensures that LEDs can function reliably at all times - thanks to the new Safe Dimming Technology, the LEDs work safely even under difficult conditions, such as the continuous high-frequency on/off cycles that are the basis of PWM Dimming.

For accessories available (strip to driver connectors, in-line joiners) please see bottom of description, section called Related products

Product family benefits
Color uniformity better than 2 SDCM on the entire LED strip and between strips
Light stability over time typically 1 SDCM, tested acc. to IEC 62717 @ 6,000 h
LED lifetime acc.to IES LM-80 and IES TM-21 standards, and also internal OSRAM LAB tests
Reliable photometric parameters according to IES LM-79, EN13032-4 and CIE S 025
Accurate description of the color rendition of the light source acc. to IES TM-30-15
Excellent robustness: single reel manufacturing technology (no solder joints on strip)
Vibration-resistant for stationary installations acc. to IEC60068-2-6 and IEC60068-2-64
Flicker and stroboscopic effect-free acc. to IEC TR 61547-1 and IEC TR 63158
Tested by accredited Product Qualification Lab. ISO9001, ISO 17025, ACCREDIA, VDE
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back

Areas of application
Direct and indirect lighting and integration in luminaires, where long lasting lighting performances are key for preserving value and prestige of lit locations.

Equipment / Accessories
Flexessories a complete set of aluminum channels with diffusers and lenses
Connectors quick-and-easy toolless installation with SLIMCONNECTsystem G2
Drivers and dimmers wide selection of OPTOTRONIC 24 V DALI, DMX and BLE
Check for more detailed information the specification sheets in the download section

Technical data
EAN: 4062172169790
Nominal voltage: 24.0 V
Type of current: DC
Nominal wattage per meter: 7.5 W
Rated wattage: 75 W
Input voltage range: 23-25 V
Accidental reverse input voltage protection up to: 25 V
Light color LED: White
Colour temperature: 3500 K
Colour rendering index Ra: 90
Luminous flux per meter: 800 lm
Total useful luminous flux: 8000 lm
Luminous efficacy: 107 lm/W
Standard deviation of color matching:
