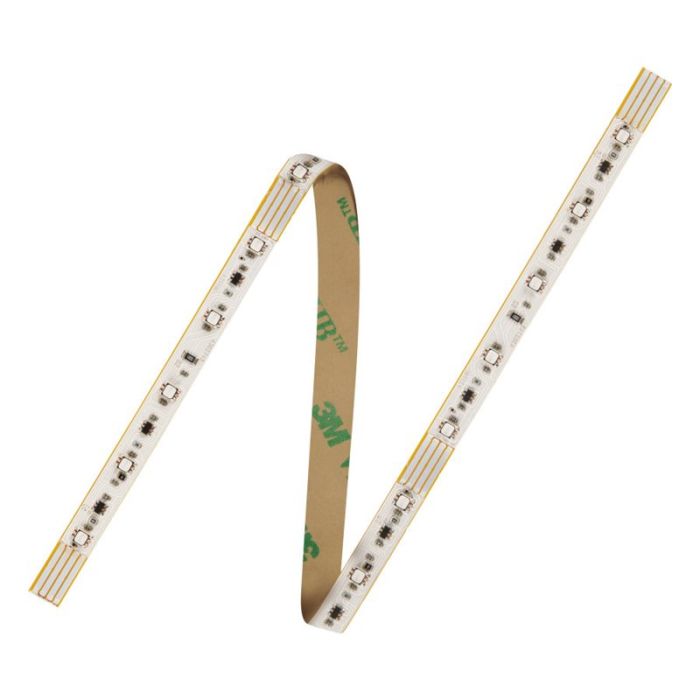

Led Lf600rgb-g5-06-l1 Rgb 6m/reel 24v Ip00 4062172283281

Osram Led Lf600rgb-g5-06-l1 Rgb 6m/reel 24v Ip00 4062172283281 LEDLF600RGBG5

LF600RGB-G5-06-L1

EAN: 4062172283281

Product family benefits
Uniform color changing
Great design freedom thanks to flexibility and cuttability of module
Simple mounting and connection
Type of protection: IP00
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back

Areas of application
Effect lighting in architecture
Injection of light into displays and low-profile light guides
Dynamic effects in public zones

Equipment / Accessories
Simplified connection with optional matching CONNECTsystem for RGB
Quick installation with optional SLIM TRACK System
Perfectly matched to OPTOTRONIC 24 V electronic control gears

Technical Data

Electrical data

Nominal wattage per meter: 16.4 W
Input voltage range: 23 25 V
Nominal current: 4.11 A
Nominal wattage: 98.60 W
Accidental reverse input voltage protection up to: 25 V
Nominal voltage: 24.0 V
Type of current: DC

Photometrical data

Luminous flux per meter: 575 lm
Nominal dominant wavelength: 620 / 530 / 470 nm
Total useful luminous flux: 3444 lm
Light color LED: Red / Green / Blue
Luminous efficacy: 35 lm/W

Light technical data

Beam angle: 120 Deg

LED module information

Number of LEDs per smallest unit: 5

Dimensions & weight
Length: 6000 mm
Length - smallest unit: 100.0 mm
Width: 8.00 mm
Height: 2.20 mm
Product weight: 65.00 g

Temperatures & operating conditions
Temperature range at storage: -40 +85 DegC
Temperature range in operation at Tc point: -35 75 DegC

Lifespan
Lifespan: 60000 h

Additional product data
ID of contained light source: LS_TRV_286403

Certificates & standards
Energy efficiency class of the contained light source: G

Logistical data
Commodity code: 853951000000

Environmental information

Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)

Date of Declaration: 02-08-2022
Primary Article Identifier: 4062172283281
Candidate List Substance 1: Lead
CAS No. of substance 1: 7439-92-1
Safe Use Instruction: The identification of the Candidate List substance is sufficient to allow safe use of the article.
Declaration No. in SCIP database: 5a901209-a949-49d4-bd18-daf329a511b5
