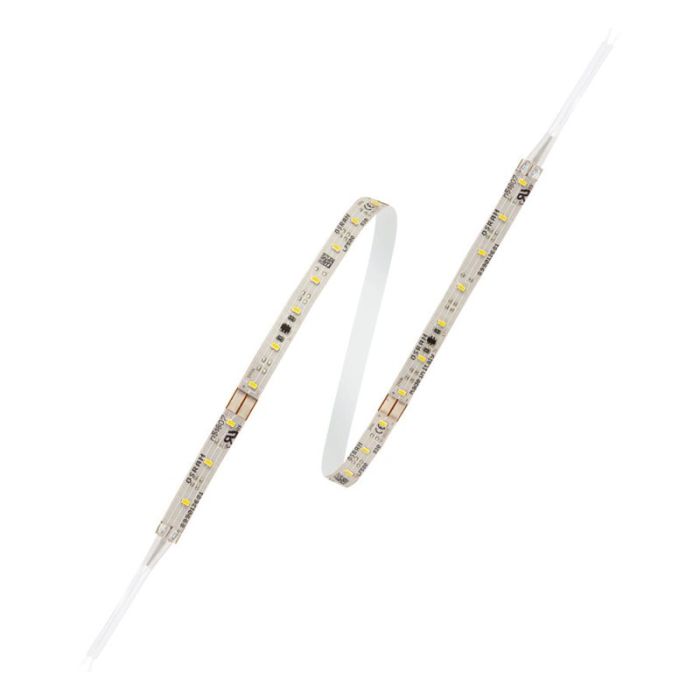

Led Lf500s-g1-930-10 L2 10m/reel 3k 24v 4062172272094

Osram Led Lf500s-g1-930-10 L2 10m/reel 3k 24v 4062172272094 LEDLF500G1930

Product family benefits

15000
Rated wattage: 39.00 W
Input voltage range: 23 25 V
Accidental reverse input voltage protection up to: 25 V

Photometrical data
Light color LED: White
Color rendering index Ra: >90
Luminous flux per meter: 400 lm
Total useful luminous flux: 4000 lm
Luminous efficacy: 103 lm/W
Standard deviation of color matching: =3 sdcm
Rated color temperature: 3000 K
Color temperature: 3000 K

Light technical data
LED pitch: 14.29 mm
Beam angle: 120 Deg
Rated beam angle (half peak value): 120.00 Deg
Starting time: < 0.5 s
Warm-up time (60 %): < 0.50 s

LED module information
Number of LEDs per meter: 70
Number of LEDs per smallest unit: 7

Additional product data
Predecessor EAN: 4052899575295
ID of contained light source: LS_TRV_274094

Capabilities
Dimmable: Yes
Lowest bending radius: 20 mm

Certificates & standards
Energy consumption: 43 kWh/1000h
Standards: CE/UL/ENEC/EAC
Type of protection: IP20
Energy efficiency class of the contained light source: F

Logistical data
Commodity code: 940542319000

Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration: 13-02-2022
Primary Article Identifier: 4062172142472
Candidate List Substance 1: Lead
CAS No. of substance 1: 7439-92-1
Safe Use Instruction: The identification of the Candidate List substance is sufficient to allow safe use of the article.
Declaration No. in SCIP database: c58a6df5-8117-4304-9eec-0c98b9a08ada
