Led Lf500s-g1-840-10 10m/reel 4k 24v 4052899575233

Osram Led Lf500s-g1-840-10 10m/reel 4k 24v 4052899575233 LEDLF500G1840

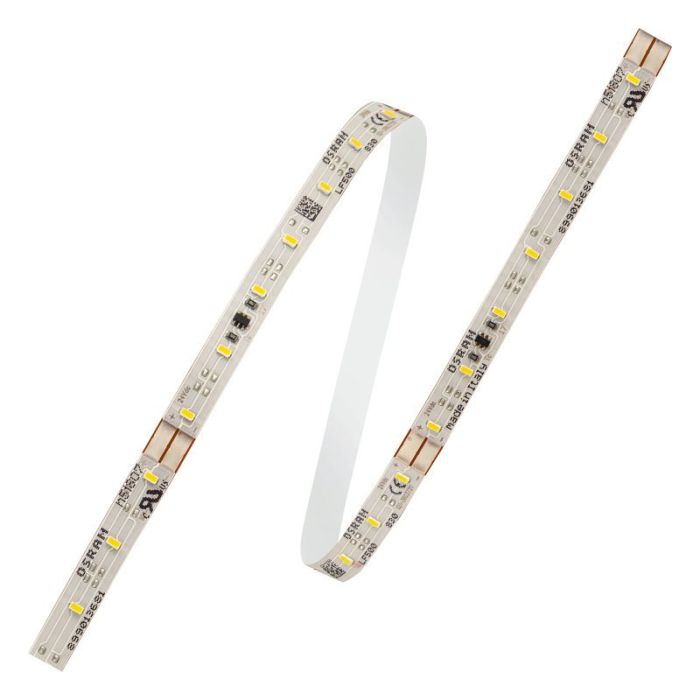

LINEARlight Flex Low Power 500 1st Generation
LF500-G1-840-10

The best solution for amazing decorative lighting

For available accessories (strip to driver connectors, in-line joiners), please see bottom of description in Related Products section

Product family benefits

Color consistency up to 2 SDCM on entire light strip thanks to Single-bin technology
Color rendering options Ra: 80 and 90
Service lifetime (L80/B10): up to 60,000 h
LM79 and LM80 compliant
Embedded constant current regulators
No solder-joints on circuit board
Flexible and cuttable LED strips
Dimmable (with suitable PWM dimming methods)

Areas of application

For high-end application with dedicated equipment and accessories

Equipment / Accessories

Flexessories: a complete set of aluminum channels with diffusers and lenses
Connectors: quick-and-easy toolless installation with SLIMCONNECTsystem G2
Drivers and dimmers wide selection of OPTOTRONIC 24 V DALI, DMX and BLE
Check for more detailed information the specification sheets in the download section

Technical data

EAN: 4052899575233
Nominal voltage: 24.0 V
Type of current: DC
Nominal wattage per meter: 3.9 W
Rated wattage: 39.00 W
Input voltage range: 23-25 V
Accidental reverse input voltage protection up to: 25 V
Light color LED: White
Color temperature: 4030 K
Color rendering index Ra: >= 80
Luminous flux per meter: 520 lm
Total useful luminous flux: 5200 lm
Luminous efficacy: 133 lm/W
Standard deviation of color matching:
