Led Lf4000-g3-830-03 24v 3k 80cri 4062172143295

Osram Led Lf4000-g3-830-03 24v 3k 80cri 4062172143295 LEDLF4000G3830

LF4000-G3-830-03

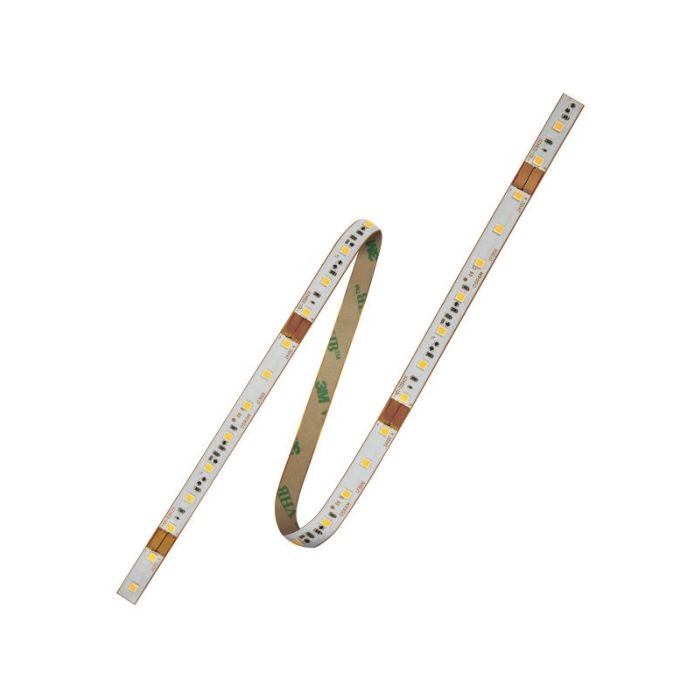

Bring your professional lighting designs dreams to life, with LINEARlight FLEX POWER 4000.
This innovative product, crafted from high quality components and materials, is flexible and cuttable, so it gives you a huge number of design options.
If you are using it on a flat surface, you can often mount it using the adhesive strip on the back; alternatively, using this product with matching accessories can make life easier the optional CONNECTsystem lets you connect modules without tools, while the SLIM TRACK system makes installation easy.
LINEARlight FLEX POWER 4000 matches OPTOTRONIC 24 V electronic control gears. It has a high luminous flux (up to 4,000 lm/m), can be dimmed using many common dimmers and comes in a wide range of light temperatures. Great for many applications including architectural lighting, ceiling integration and cove lighting.

Product family features

Flexible and cuttable LED strip
Luminous flux up to 3800 lm/m
Module efficacy up to 133 lm/W
Dimmable with PWM technology
Fine White (3 SDCM)
High CRI versions typical average value 95

Product family benefits

Single bin technology for very good color consistency over time and space
Large selection of light colors
Large selection of white tones
High luminous flux suitable for general lighting
"Shop White" versions available for great color rendering without yellowing effect
Great design freedom thanks to flexibility and cuttability of module
Extraordinary design and high quality materials
Simple mounting and connection
Toolless connection with the optional CONNECTsystem
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back

Areas of application

Cove lighting
Ceiling integration

Equipment / Accessories

Simplified connection with the optional CONNECTsystem
Quick installation with optional SLIM TRACK System
Perfectly matched to OPTOTRONIC 24 V electronic control gears

Note

The lifetime of LED FLEX is reduced if the LEDs get too hot.
Heat management is best achieved with aluminium profiles,

In addition to acting as a heat sink, profiles provide protection and
can often enhance the appearance with use of a diffuser.
All high powered LED flex require heat management and this product
should be used with a suitable profile.

Technical data

EAN: 4052899952874
Nominal voltage: 24.0 V
Type of current: DC
Nominal wattage per meter: 28.9 W
Rated wattage: 86.70 W
Input voltage range: 23-25 V
Accidental reverse input voltage protection up to: 25 V
Light color LED: White
Color temperature: 3000 K
Color rendering index Ra: >80
Luminous flux per meter: 3750 lm
Total useful luminous flux: 11250 lm
Luminous efficacy: 130 lm/W
Standard deviation of color matching: = 15000
Dimmable: Yes
Lowest bending radius: 20 mm
Self-adhesive: Yes
With connection set: Yes
With end piece: No
Energy efficiency class: A+
Energy consumption: 95 kWh/1000h
Standards: CE; ENEC 10 VDE/EAC/UL Recognized component according UL 8750
Type of protection: IP00
Commodity code: 940540399000
