Led Lf3000-g3-930-03 24v 3k 90cri 4052899963955

Osram Led Lf3000-g3-930-03 24v 3k 90cri 4052899963955 LEDLF3000930

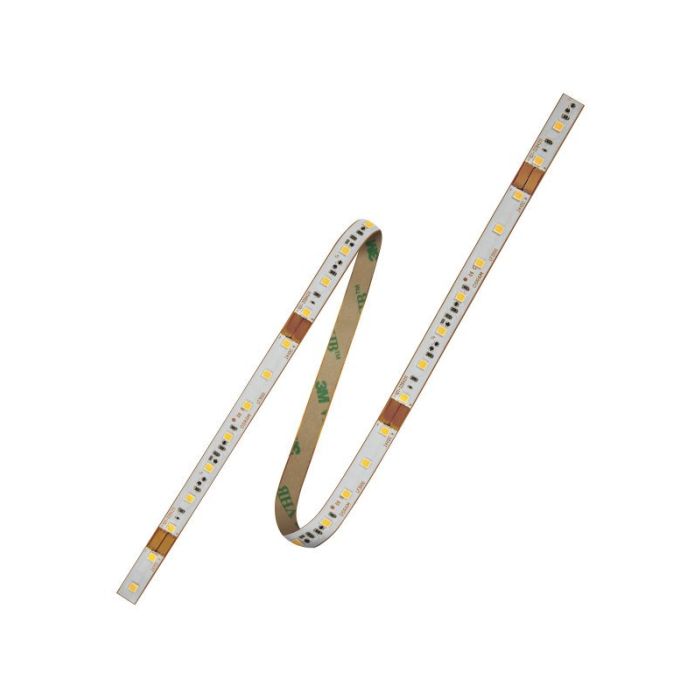

LINEARlight FLEX POWER 3000
LF3000 -G3-930-03

Whether you are a lighting designer, manufacturer or electrician, you can now take light where you need it, with LINEARlight FLEX POWER 3000.

With a large selection of light colors, high luminous flux of up to 3,000 lm/m and a fine white of 3 SDCM, this innovative product lets you design and install striking, high quality light into even challenging spaces. This flexible, cuttable strip of LEDs is ideal for architectural lighting, cove lighting and ceiling integration.

Application is straightforward, particularly if you use complementary products from the OSRAM range. The adhesive strip on the reverse is often enough to fix it to smooth surfaces; alternatively, the matching SLIM TRACK system provides quick and easy installation.

The optional CONNECTsystem lets you connect modules without tools. LINEARlight FLEX POWER 3000 matches OPTOTRONIC 24 V control gears, and can be dimmed via many common dimmers. Designed for the professional, this module gives stunning and memorable lighting effects, with minimal fuss.

Product family features

Flexible and cuttable LED strip
Luminous flux up to 3000 lm/m
Module efficacy up to 138 lm/W
Dimmable with PWM technology
Fine White (3 SDCM)

Product benefits

Large selection of light colors
Great design freedom thanks to flexibility and cuttability of module
Simple mounting and connection
Toolless connection with the optional CONNECTsystem
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
High luminous flux
Extraordinary design and high quality materials
Type of protection IP00

Product features

Flexible and cuttable LED strip
Luminous flux up to 3000 lm/m
Module efficacy up to 138 lm/W
Dimmable with PWM technology
Fine White (3 SDCM)

Areas of application

Architecture lighting
Cove lighting
Ceiling integration

Equipment / Accessories

Simplified connection with optional matching CONNECTsystem
Quick installation with optional SLIM TRACK System
Perfectly matched to OPTOTRONIC 24 V electronic control gears reduce

Note

The lifetime of LED FLEX is reduced if the LEDs get too hot.
Heat management is best achieved with aluminium profiles.

In addition to acting as a heat sink, profiles provide protection and
can often enhance the appearance with use of a diffuser.
All high powered LED flex require heat management and this product
should be used with a suitable profile.

Technical data

EAN: 4052899963955
Nominal wattage: 86.7 W
Nominal wattage per meter: 28.9 W
Reverse Voltage: 25 V
Nominal voltage: 24 V
Input voltage range: 23-25 V
Type of current: DC
Nominal current: 3.61 A
Colour temperature: 3000 K
Light colour (designation): Warm White
Light colour LED: White
Luminous flux per meter: 3000 lm
Luminous flux: 8100 lm
Luminous efficacy: 93 lm/W
Colour rendering index Ra: >90
Beam angle: 120 Deg
Number of LEDs per meter: 70
Number of LEDs per module: 210
Length: 3000 mm
Width: 8 mm
Height: 1.4 mm
Product weight: 39 g
Length - smallest unit: 100 mm
LED pitch: 14.3 mm
Temperature range in operation: -20 +75 C
Lifespan: 60000 h
Dimmable: Yes
Self-adhesive: Yes
Lowest bending radius: 20 mm
With connection set: Yes
With end piece: No
Standards: EAC/VDE/Acc. to ENEC 10
Type of protection: IP00
Energy efficiency class: A+
Energy consumption: 87 kWh/1000h
Temperature range at storage: -40 +80 C
Commodity code: 940540399000
