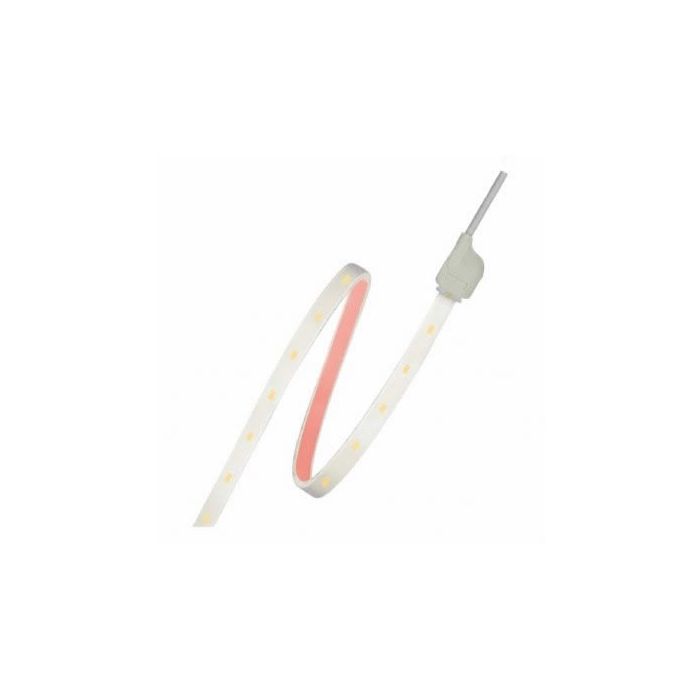

Led Lf06p2-w4f-876-p Linearlight Power Flex Ip67 24v 76k 4008321789969

NEW: Slimmer Design
Reduced height 3.7 mm
Elegant white appearance
Electronic components hidden
Shorter pitch compared to prior generation

Product benefits

High luminous flux
Great design freedom thanks to flexibility and cuttability of module
High-performance silicon for extremely long life and flexibility
Simple connection thanks to premounted connectors
Extraordinary design and high quality materials
Toolless connection with the optional CONNECTsystem
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back

Areas of application

Facade accent lighting
Ceiling integration
Wall integration
Cove lighting
Machine lighting
Path lighting

Product features

Flexible and cuttable LED strip
Luminous flux up to 1400 lm/m
Type of protection IP67
Dimmable
Fine White
Salt mist proof
Highly UV-resistant

Equipment / Accessories

Simplified connection with optional matching CONNECTsystem
Quick installation with optional SLIM TRACK System
Perfectly matched to OPTOTRONIC 24 V Electronic

* For conditions and detailed information, visit www.osram.com/system-guarantee.

Nominal voltage: 24 V
Power consumption: 88 W
Power consumption per meter: 17.3 W
Reverse Voltage: 25 V
Type of current: DC
Voltage range: 23-25 V
Energy consumption: 88 kWh/1000h
Colour temperature: 7600 K
Colour appearance: Cold White
Color rendering index: > 80 Ra
Light color LED: white
Luminous flux: 7140 lm
Luminous flux per meter: 1400 lm
Beam angle: 120 Deg
Dimensions l x b x h : 5100 x 11 x 3.7 mm
Cable length: 500 mm
Product weight: 280 g
Lifespan (L70/B50 at 40 C): 50000 h
Number of LEDs per module: 204
Number of LEDs per meter: 40
Dimmable: Yes
Type of protection: IP67
Energy efficiency class: A+
Size of smallest unit 6 LED - (L x W): 150 x 11 x 3.7 mm
EAN: 4008321789969
High colour consistency: 3.5 SDCM
Warranty: 5 Years*
Manufacturers Website: www.osram.com/osram_com/products/led-technology/light-engines-and-modules/flexible-led-modules/flexible-led-modules-for-professional-and-industrial-applications/linearlight-power-flex-protect
