Led Lf06a-w3f-865 Linearlight Flex Advanced 65k 24v 4008321974020

LF06A -W3F-865

Product benefits

Very long for seamless bands of light
Large selection of light colors
Great design freedom thanks to flexibility and cuttability of module
Simple mounting and connection
Toolless connection with the optional CONNECTsystem
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back

Product features

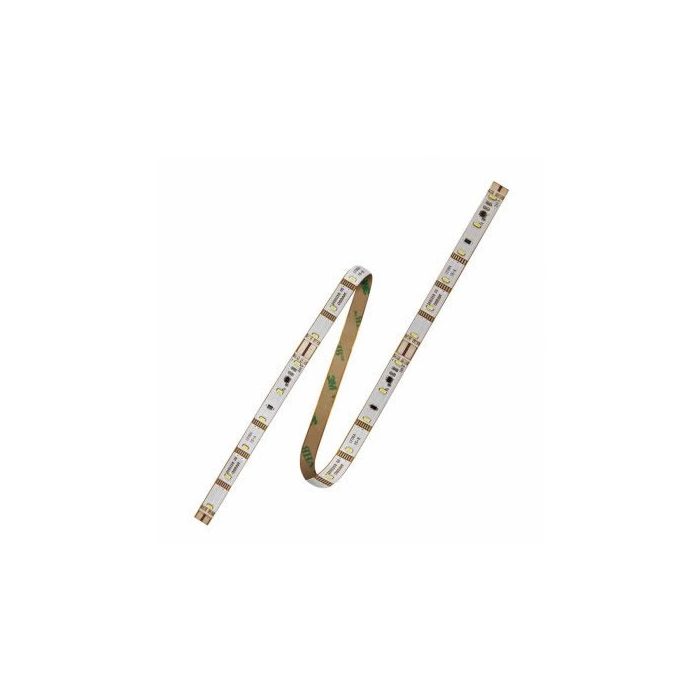

Flexible and cuttable LED strip
Luminous flux up to 425 lm/m
Module efficacy up to 88 lm/W
Dimmable
Fine White (3 SDCM)

Areas of application

Cove lighting
Signage
Advertising and lettering

Equipment / Accessories

Simplified connection with optional matching CONNECTsystem
Quick installation with optional SLIM TRACK System
Perfectly matched to OPTOTRONIC 24 V Electronic Control Gears

* For conditions and detailed information, visit www.osram.com/system-guarantee.

EAN: 4008321974020
Nominal voltage: 24 V
Power consumption: 48 W
Nominal wattage per meter: 4.8 W
Reverse voltage: 25 V
Type of current: DC
Voltage range: 23-25 V
Energy consumption: 48 kWh/100h
Colour temperature: 6500 K
Colour appearance: Daylight White
Colour rendering index: > 80 Ra
Luminous flux per meter: 425 lm
Luminous flux: 4230 lm
Luminous efficacy: 88 lm/W
Beam angle: 120 Deg
Number of LEDs per module: 600
Number of LEDs per meter: 60
Lenght: 10000 mm
Smallest cutting point: 100 mm
Width: 8 mm
Height: 2.1 mm
Product Weight: 132 g
Temperature range in operation: -30 +75 C
Temperature range at storage: -40 +85
Lifespan: 50000 h
Dimmable: Yes
Energy efficiency class: A++
High colour consistency: 3 SDCM
Warranty: 5 Years*
