Led It Dali 12/220-240/300 Cs 4062172306218

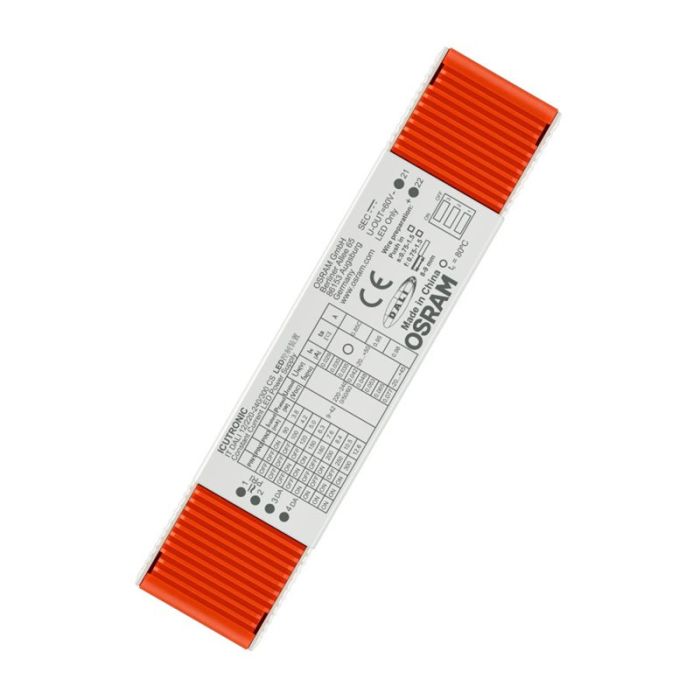

Osram Led It Dali 12/220-240/300 CS 4062172306218 LEDDALIIC12300CS

IT DALI 12/220 240/300 CS
EAN: 4062172227698

Product family benefits
Safety ensured by OSRAM (SELV)
DALI-2 certified
High flexibility due to eight different output currents
Touch DIM application: easy to control via pushbutton or sensor
Easy to use in corridors and restrooms because of three-level Corridor function
Higher quality of light thanks to low output ripple current
Small housing for flexible luminaire designs

Areas of application
Offices
Shops
Hospitality
Panels, spotlight, downlight, and other indoor LED luminaires
Suitable for indoor SELV equivalent installations
Suitable for luminaires of protection classes I and II
Installation in emergency lighting systems according to IEC 61347-2-3, appendix J
DALI 2 Logo black and white 540301_SELV, short circuit proof

Technical Data

Electrical data
Nominal input voltage: 220 240 V
Mains frequency: 0/50/60 Hz
Input voltage AC: 198 264 V
Input voltage DC: 176 276 V
Total harmonic distortion: < 10 %
Power factor ?: 0.98
Efficiency in full-load: 81 %
Device power loss: 3.0 W
Protective conductor current: <0.7 mA
Inrush current: 25 A
Max. ECG no. on circuit breaker 10 A (C): 56
Max. ECG no. on circuit breaker 10 A (B): 34
Max. ECG no. on circuit breaker 16 A (C): 90
Max. ECG no. on circuit breaker 16 A (B): 54
Max. ECG no. on circuit breaker 25 A (B): 84
Surge capability (L/N-Ground): 2 kV
Surge capability (L-N): 1 kV
Nominal output voltage: 9 42 V
U-OUT (working voltage): 60 V
Nominal output current: 90 / 100 / 120 / 150 / 180 / 200 / 250 / 300 mA
Output current tolerance: +/-5 %
Output ripple current (100 Hz): < 5 %
Output PSTLM: =1
Output SVM: =0.4
Nominal output power: 0.8...12.6 W
Maximum output power: 12.6 W
Networked standby power: <0.50 W
Current set: DipSwitch
Power loss in stand-by mode: <0.5 W
Galvanic isolation primary/secondary: SELV
Galvanic isolation DALI/mains: Basic
Galvanic isolation DALI/output: SELV
Default output current: 300 mA

Dimensions & weight
Mounting hole spacing, length: 116.0 mm
Mounting hole spacing, width: -
Product weight: 68.50 g
Cable cross-section, input side: 0.75 1.5 mmSq
Cable cross-section, output side: 0.75 1.5 mmSq
Wire preparation length, input side: 7 8 mm
Wire preparation length, output side: 7 8 mm
Width: 30.0 mm
Height: 22.2 mm
Length: 130.0 mm

Colors & materials
Casing material: Plastic

Temperatures & operating conditions
Ambient temperature range: -20 +50/-20 +45 DegC
Maximum temperature at tc test point: 80 DegC
Max.housing temperature in case of fault: 110 DegC
Temperature range at storage: -20 85 DegC
Permitted rel. humidity during operation: 5 85 %

Lifespan
ECG lifetime: 50000 h

Additional product data
Encapsulated: No
Predecessor EAN: 4052899617131

Capabilities
Dimmable: Yes
Dimming interface: DALI-2 / Touch DIM / Corridor
Dimming range: 1 100 %
Dimming method: Amplitude Modulation
Overheating protection: Automatic reversible
Overload protection: Automatic reversible
Short-circuit protection: Automatic reversible
No-load proof: Yes
Intended for no-load operation: No
Max. cable length to lamp/LED module: 2.0 m
Suitable for fixtures with prot. class: I / II
Type of connection, input side: Push terminal
Type of connection, output side: Push terminal
Detection angle (PIR): -
Control interface: DALI-2
Programming interface: Dipswitch
Constant lumen function:No
DALI-2 Energy Data: -
DALI-2 Diagnostic Data:-
Suitable for emergency lighting: Yes
Suitable for through-wiring: No
Detection angle (Light sensor): -
Number of channels: 1

Programming
Tuner4TRONIC: Yes
Tuner4TRONIC Field App: No
Box programming: -
Programming device: DALI magic / DIPswitch

Programmable features
Constant Lumen: No
Lamp Operating Time: No
Configuration Lock: Yes
OEM Key: -
DALI-2 Luminaire Data: -
Emergency Mode: Yes
TouchDIM + Sensor: Yes
Dim to Dark: No
Soft Switch Off: No
Driver Guard: No
End of Life: No
DALI Settings: Yes
Corridor Functionality: Yes

Certificates & standards
Approval marks - approval: CE / ENEC / EL / RCM / UKCA / CCC / KC / BIS
Standards: Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to EN 55015/Acc. to IEC 61547/Acc. to IEC 61000-3-2/Acc. to IEC 62384
Protection class: II
Type of protection: IP20

Logistical data
Commodity code:850440829000

Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration: 18-10-2022
Primary Article Identifier: 4062172306218
Candidate List Substance 1: Lead
CAS No. of substance 1: 7439-92-1
Safe Use Instruction: The identification of the Candidate List substance is sufficient to allow safe use of the article.
Declaration No. in SCIP database: baebb8de-921a-4575-9e27-800951455116
