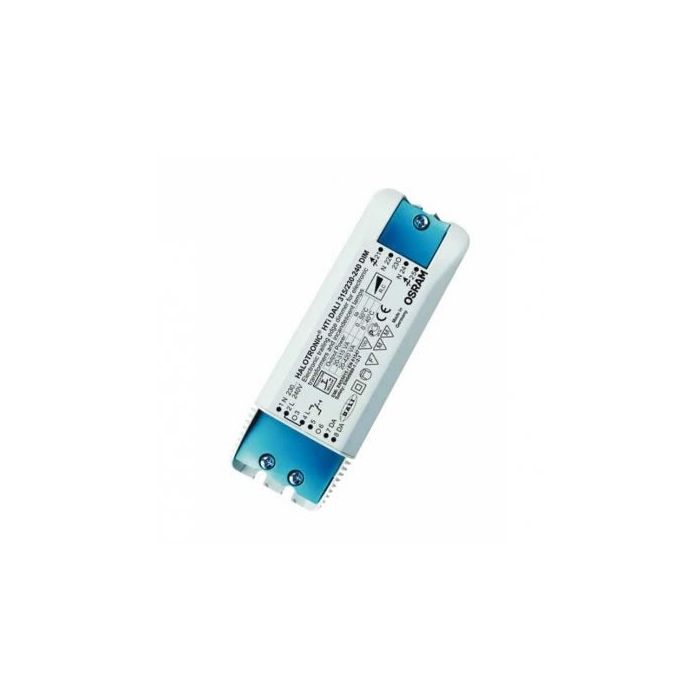

Osram Hti Dali 315w Dim LED Dali To Mains Converter 4008321957344

Osram Led Hti Dali 315w Dim Dali to Mains Converter 4008321957344 TRHTIDALI315D

Enhance your lighting control with the Osram LED HTI Dali 315W Dim Dali to Mains Converter Trailing edge - Dimmer. This converter offers a versatile interface with DALI & TOUCH DIM capabilities, allowing seamless control of up to 315/420 VA incandescent load and up to 200 VA LED retrofit-lamp load. With optimized compatibility for Osram LED retrofit-lamps and incandescent lamps, this converter ensures efficient lighting performance, equivalent to 1200W halogen.

Experience easy plug-and-play installation with the included cable clamp. Enjoy peace of mind with short-circuit, overload, and over-temperature protection. The standby power consumption is impressively low, less than 0.5W.

Ideal for spot- and ambient-lighting in residential, shop, hospitality, and classic lighting areas, as well as trade applications. It is suitable for all Osram HALOTRONIC and ET-PARROT ECGs, making it a versatile solution for various lighting needs. Elevate your lighting system with this advanced converter from Osram.

HTI DALI 315 DIM V2

Product Features:

• Trailing edge - Dimmer
• DALI & TOUCH DIM interface
• Can control up to 315/ 420 VA incandescent load
• Can control up to 200 VA LED retrofit-lamp load
• Min. load reduced to 3 VA
• Optimized for OSRAM LED retrofit-lamp and incandescent lamps
• Up to 200 VA LED retrofit-lamp load corresponded 1200 W halogen equivalent
• Plug and play installation
• Cable clamp included
• Short-circuit protection, overload protection, over temperature protection: electronically reversible
• Standby power consumption < 0.5 W

Application Area

• Spot- and Ambient- lighting
• Residential/ Shop/ Hospitality areas
• Classic lighting areas
• Trade

Equipment/Accessories

Suitable for all OSRAM HALOTRONIC and ET-PARROT ECGs

• EAN: 4008321957344
• Load capacity (R, C): 20-315 VA (at 50 C)
• Load capacity (R, C): 20-420 VA (at 40 C)
• Load capacity (LED): 3-200 VA (at 40-50 C)
• Standby power consumption: =< 0.5 W
• Device power losses: =< 4 W
• Nominal voltage: 220-240 V
• Mains frequency: 50 Hz
• DC Operation: NOT ALLOWED!
• Length: 153.0 mm
• Width: 54.0 mm
• Height: 36.0 mm
• Mounting hole spacing, width: 15.0 mm
• Mounting hole spacing, length: 146.0 mm
• Product weight: 137.00 g
• Ambient temperature range: 0 +50 C
• Design/version: Compact with cable clamp
• Dimming method: Trailing-edge dimmer
• Dimming interface: DALI / Touch DIM
• Max. cable length to lamp/LED module: 2.0 m
• Dimmable: Yes
• Dimming range: 0.1-100 %
• Type of protection: IP20
