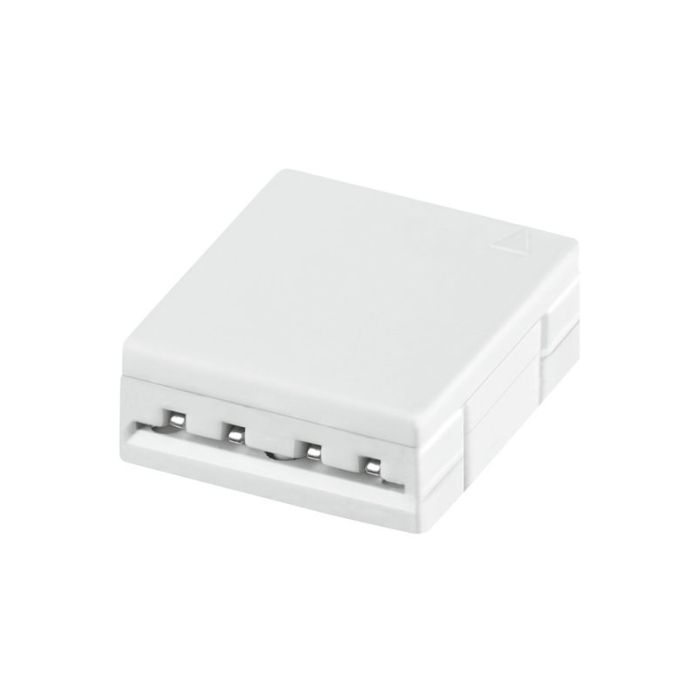

Led Fx-sc08-g2-ct4pj Board To Board Joiner For Flex 4052899464858

LINEARlight Flex - Accesories

FLEXESSORIES
SLIMCONNECT SYSTEM 08-G2

Enjoy full flexibility in lighting design.
Connect easily modules without any need of tools. The SLIM CONNECT SYSTEM is made for minimalistic integration into aluminum profiles and luminaires. Yet offering a strong retention force to the module and extra mounting support through the additional adhesive back on the connectors? backside.

Range Features & Benefits

- Assembly without tools
- Robust connection
- Fits into SLIM TRACK
- Adhesive tape on the back to support mounting
- Keep LED pitch at board to board connection
- Extension wires for connection across corners

Product Features & Benefits

2nd Generation of CONN FLEX SC
Short installation time (CONNECTsystem)
Joiner for board-to-board connection (Interconnect two modules)
Jumper for 1-3 channels /colors

Compatible with: LF4000, LF3000, LF2000, LF1200, LF800S, LF06A, LF05A2, LF06E, LF05E, LF5CA2

Sold individually!

Product: FX-SC08-G2-CT4PJ
EAN: 4052899464858 (was 4008321832467)
Cable length: no cable
Rated insulation voltage: < 25 V
Rated current: 5 A
Connector closing force: 22 N
LED PCB retention force: >=15 N
Volume resistance:
