Led Fire Rated Downlight 9w 3k 55deg Dim 5055788213772

Intergral LED Led Fire Rated Downlight 9w 3k 55deg Dim 5055788213772 LEDDFR955D3K

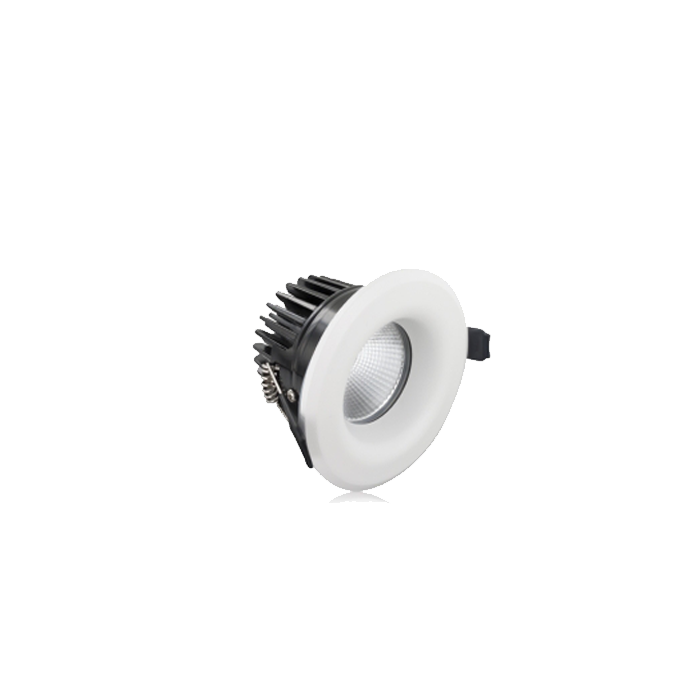

Fire Rated Downlight 9W (50W) 3000K 640lm 55 deg beam angle 70mm cut-out Dimmable

Who says you cant have style without safety? The new range of Integral LED Fire Rated downlights not only conform to 30, 60 and 90mins fire rating specifications but have been designed to deliver a low-glare, high quality light with a contemporary design that will look impressive in any setting.

High quality, stylish design. Beam has softened edges for a luxurious effect. Supplied with a white scalloped metal bezel (interchangable). Easy to install with low-profile body. Complete with Loop-in / Loop-out driver. IP65 and Air tightness compliant with Part C and Part L. Resistance to Sound compliant with Part E.

Product features

White Light
640 Lumens
Dimmable
Matt white finish

Manufacturers Code: ILDLFR70A007
Quick Order Code: 68-66-81
Range Name: Lux Fire
Application: Indoor, General Lighting
Market Segment: Commercial indoor, Residential indoor
Product Type: Halogen replacements
Warranty: 3 Yrs
CE / RoHS: Yes
Product Finish: Matt white
Spot Type: COB
Optic: Clear Refractor
Material: Aluminium, Steel, Acrylic
Construction: Extruded Aluminium heat-sink and body, Steel springs and mounting plate, acrylic diffuser
Length: 70 mm
Diameter: 85 mm
Weight (Unpackaged Single Unit): 370 g
Cut Out Diameter: 70 mm
Lum. Fixing: Recess mounted
Fire Rating: 30, 60, 90
Voltage Range: 220-240 V
Power Consumption: 9 W
Current: AC
Ampage: 190 mA
Frequency Range: 50/60 Hz
Wattage Equivalent: 50 W
Power Factor: >= 0.89
Dimming: Dimmable with compatible dimmers
Compatible Dimmer(s): Varilight JQP401W
LVD Certified: Yes
EN: EN-60598
Luminous flux: 640 lm
Luminous efficiency: 71 lm/W
Colour temperature: 3000 K
Colour appearance: Warm White
Beam Angle: 55 Deg
Colour Rendering Index: >= 85
LED Manufacturer: Sharp
LED Type: Chip on board (COB)
Instant on - Less than 1 second: Yes
Lifetime: 35,000 hrs
Switching Cycles: >17,500 X
Energy Rating: A+
Lowest Operating Temperature: -20 C
Maximum Operating Temperature: +45 C
IP (Ingress Protection) Rating: IP65
Hg 0% (Mercury Free): Yes
Manufacturers Website: www.integral-led.com/products/downlights/fire-rated-downlight-9w-50w-3000k-640lm-55-deg-beam-angle-70mm-cut-out-dimmable
