Led Element Driver 120w 4052899605541

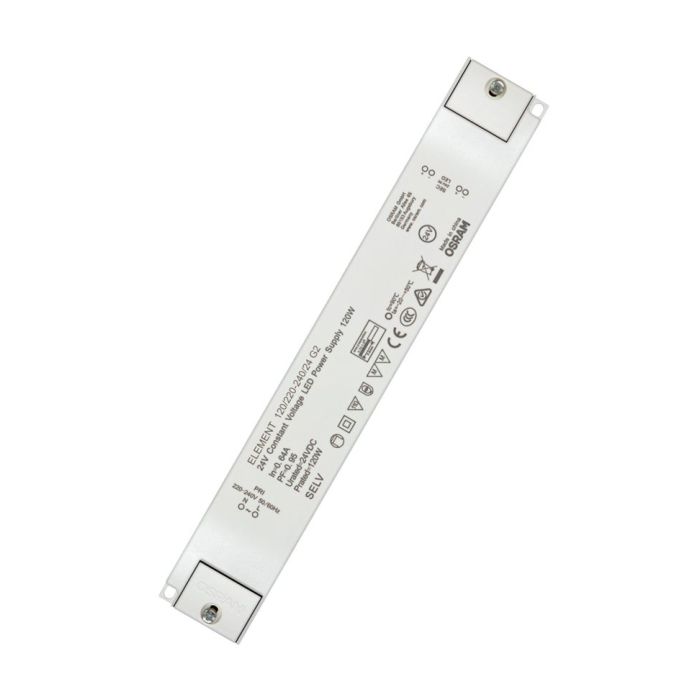

LED Element Driver 120W 4052899605541 LEDECV12024 By Osram
Osram LED Element Driver 120W 4052899605541 LEDECV12024
LEDECV12024
OSRAM ELEMENT 120/220-240/24 G2, White
Product benefits:
High efficiency (up to 86%)
Higher quality of light thanks to <3% output ripple current
Excellent price/performance ratio
Class II design for wide application
3 years guarantee
Areas of application:
Decorative lighting in hospitality, restaurants and Shops
Shelf lighting
Cove lighting
Under cabinet lighting
Technical Data:
EAN Code: 4052899605541
Nominal input voltage: 220-240 V
Mains frequency: 50-60 Hz
Input voltage AC: 198-264 V
Power factor: 0.95
ECG efficiency: 89 %
Device power loss: 14.8 W
Inrush current: < 32 A
Max. ECG no. on circuit breaker 10 A (B): 5
Max. ECG no. on circuit breaker 10 A (C): 8
Max. ECG no. on circuit breaker 16 A (B): 8
Max. ECG no. on circuit breaker 16 A (C): 12
Max. ECG no. on circuit breaker 25 A (B): 12
Surge capability (L-N): 1 kV
Nominal output voltage: 24 V
Nominal output power: 120 W
Galvanic isolation primary/secondary: 3 kV
Output ripple Voltage (100 Hz): < 3 %
Mounting hole spacing, length: 252 mm
Weight: 386 g
Cable cross-section, input side: 0.75-1.5 mmSq
Cable cross-section, output side: 0.75-1.5 mmSq
Wire preparation length, input side: 5.0 mm
Height: 31.0 mm
Length: 260.0 mm
Width: 40.0 mm
Casing material: Plastic
Ambient temperature range: -20 - +50 DegC
Maximum temperature at tc test point: 90 DegC
Max. housing temperature in case of fault: 110 DegC
Temperature range at storage: -40 - +85 DegC
Permitted rel. humidity during operation: 5-85 %
ECG lifetime: 30000 h
Encapsulated: Yes
Dimmable: No
Overheating protection: Yes
Overload protection: Yes
Short-circuit protection: Yes
Suitable for fixtures with prot. class: I / II
Number of channels: 1
Approval marks - approval: CE / RCM / CCC / MM
Standards: Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to IEC 61000-3-2/Acc. to CISPR 15/Acc. to IEC 61000-3-3/Acc. to IEC 61547
Type of protection: IP20
Commodity code: 850440829000
Manufacturer website: www.osram.com
Brand | Osram |
---|---|
Manfacturer Code | LEDECV12024 |
