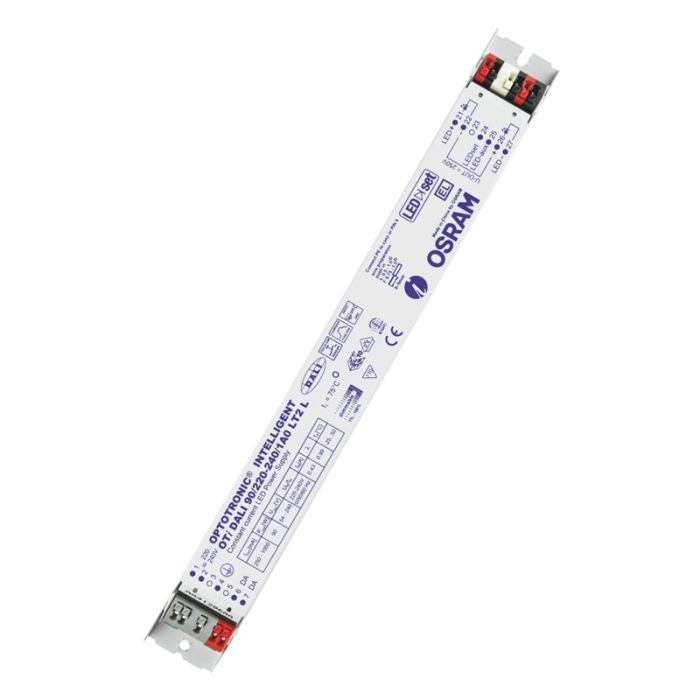

Led Driver Oti Dali 90/220-240/1a0 Lt2 L

EAN: 4062172082327

Product family benefits

• Fully programmable via software (DALI Interface)
• Flexible current setting (LEDset2)
• Lifetime: up to 100,000 h (temperature at Tc = 65 DegC, max. 10 % failure rate)
• High-quality dimming of 1 100 % by amplitude dimming (except 80 W versions)
• High quality of light thanks to 0.95
• Efficiency in full-load: 94 %
• Device power loss: 9.0 W
• Networked standby power [GMS]: =0.30 W
• Inrush current: 25 A
• Max. ECG no. on circuit breaker 10 A (B): 15
• Max. ECG no. on circuit breaker 16 A (B): 24
• Max. ECG no. on circuit breaker 25 A (B): 29
• Surge capability (L/N-Ground): 2 kV
• Surge capability (L-N): 1 kV
• Nominal output voltage: 54 240 V
• U-OUT (working voltage): < 250 V
• Nominal output current: 250 1000 mA
• Output current LEDset open: 125 mA
• Output current LEDset shorted: 250 mA
• Default output current: 125 mA
• Output current tolerance: +/-3 %
• Output ripple current (100 Hz): < 1 %
• Output PSTLM: =1
• Output SVM: =0.4
• Nominal output power: 13.5 90 W
• Maximum output power: 90 W
• Galvanic isolation: Non isolated

Dimensions & weight

• Mounting hole spacing, length: 270.0 mm
• Product weight: 205.00 g
• Cable cross-section, input side: 0.5 1.5 mmSq
• Cable cross-section, output side: 0.5 1.5 mmSq
• Wire preparation length, input side: 8.5 9.5 mm
• Wire preparation length, output side: 8.5 9.5 mm
• Length: 280.0 mm
• Height: 21.0 mm
