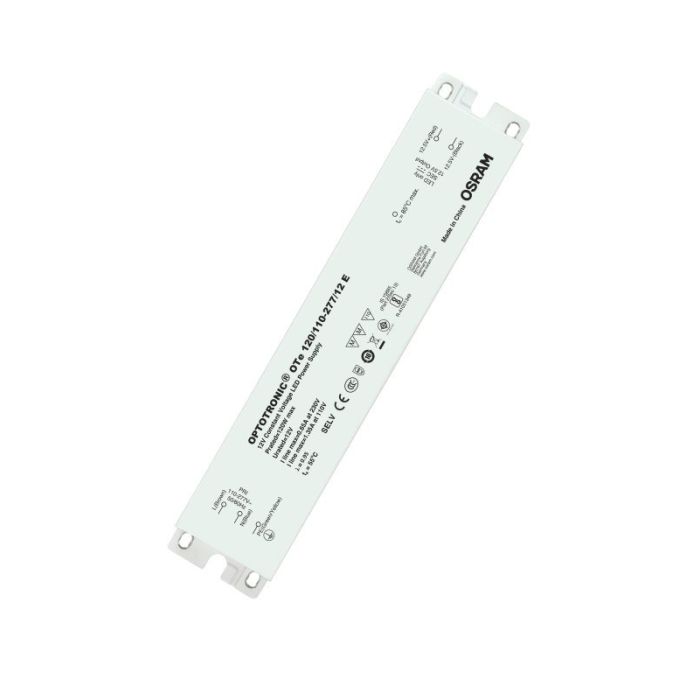

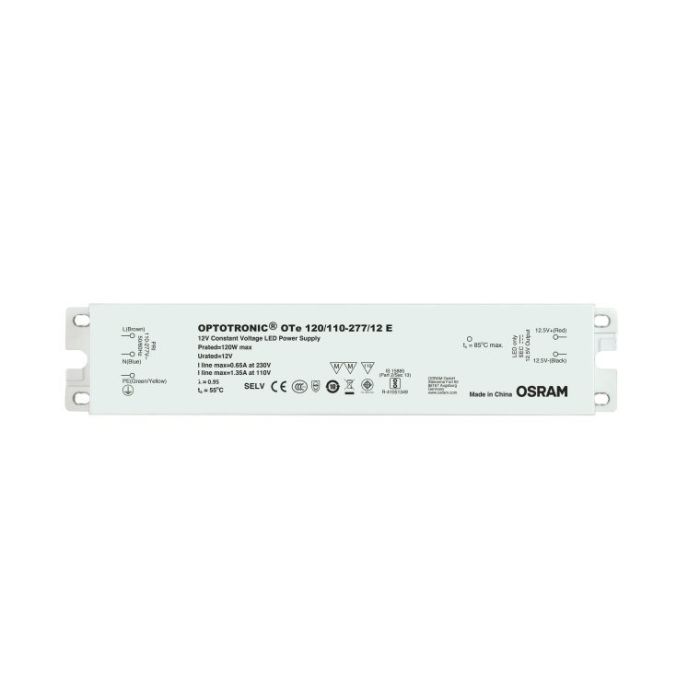

Led Driver Ote 120/110-277/12 E 12v 120w 4008321821263

OTe 120/110-277/12 E

CV Power supplies 12 V

Product benefits

Versatile scope of application due to output power range of up to 120 W
Very high efficiency and reliability
High IP protection (IP67)
High surge protection: up to 3kV (L-N) / 6 kV (L/N-PE)

Areas of application

Suitable for indoor and outdoor installations
Ideal for mounting in very tight spaces

EAN: 4008321821263
Output power: 120 W
Input voltage: 100-305 V
Mains frequency: 50/60 Hz
Output voltage: 12.5 V (+/- 0.5V)
Nominal voltage: 110-270 V
Nominal current: 0.7 A
Device power losses: max. 18 W
Power factor (full load/half load and 230V): > 0.95 / 0.90
ECG efficiency (at full load and 230V): 85 %
Inrush current: 40 A
Max no. of ECGs on circuit breaker 10 A: 3
Max no. of ECGs on circuit breaker 16 A: 6
Galvanic isolation primary/secondary: 3.75 kV
Surge capability (L/N-Ground): 3 kV
Surge capability (L-N): 2 kV
Lenght: 258 mm
Width: 51.2 mm
Mounting hole spacing, lenght: 246.0 mm
Height: 44.5 mm
Product weight: 1150 g
Cable cross-section, input side: 0.83 sqmm
Cable cross-section, output side: 0.83 sqmm
Wire preparation lenght, input side: 8 mm
Casing material: Metal
Ambient temperature range: -25 +55 C
Temperature range at storage: -40 +85 C
Maximum temperature at tc test point: 85 C
Max. housing temperature in case of fault: 110 C
ECG lifetime (at Tc = 70C / 10% failure rate): 50000 h
Dimmable: No
Suitable for fixtures with prot. class: I
Overheating protection: Automatic reversible
Overload protection: Automatic reversible
No-load proof: Yes
Maximum wiring lenght ECG/lamp: 10 m
Type of protection: IP64
Standards: Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to CISPR 15/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3/Acc. to IEC 61547
Approval marks: CE
