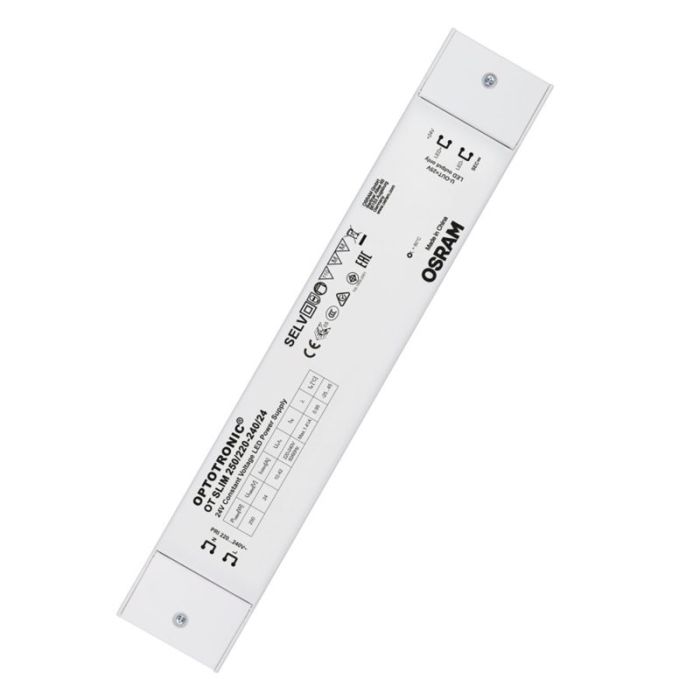

Led Driver Ot Slim 250/220-240/24 24v 250w 4062172135917

Osram Led Driver Ot Slim 250/220-240/24 24v 250w 4062172135917 LEDOT25024

Areas of application
Facades, public squares, cruise ships
Signage
Suitable for indoor and outdoor installations

Electrical data
Nominal input voltage: 220 240 V
Mains frequency: 50 60 Hz
Input voltage AC: 195.5 276 V
Input voltage DC: 176 250 V
Total harmonic distortion: < 5 %
Power factor ?: > 0.95
Efficiency in full-load: 91 %
Device power loss: 28 W
Inrush current: 70 A
Surge capability (L-N): 1 kV
Nominal output voltage: 24.2 V
U-OUT (working voltage): 24 V
Nominal output power: 250 W
Maximum output power: 250 W
Galvanic isolation: SELV
Output ripple Voltage (100 Hz): +/- 5 %

Dimensions & weight
Mounting hole spacing, length: 295.0 mm
Product weight: 880.00 g
Cable cross-section, input side: 0.75 1.5 mmSq
Cable cross-section, output side: 0.75 1.5 mmSq
Wire preparation length, input side: 5.0 mm
Wire preparation length, output side: 5.0 mm
Width: 60.0 mm
Height: 31.0 mm
Length: 343.0 mm

Colors & materials
Casing material: Plastic

Temperatures & operating conditions
Ambient temperature range: -25 +45 DegC
Maximum temperature at tc test point: 80 DegC
Max.housing temperature in case of fault: 110 DegC
Temperature range at storage: -40 +85 DegC
Permitted rel. humidity during operation: 5 85 %

Lifespan
ECG lifetime: 50000 h

Capabilities:
Dimmable: No
Dimming interface: -
Dimming range: -
Overload protection: Automatic reversible
Short-circuit protection: Automatic reversible
No-load proof: -
Intended for no-load operation: No
Suitable for fixtures with prot. Class: I / II
Type of connection, input side: Screw terminal
Type of connection, output side: Screw terminal

Certificates & standards
Approval marks - approval: CE / CB / ENEC / CCC / EAC / RCM / BIS
Standards: Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to EN 55015/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3
Protection class: II
Type of protection: IP20

Logistical data
Commodity code: 850440829000
