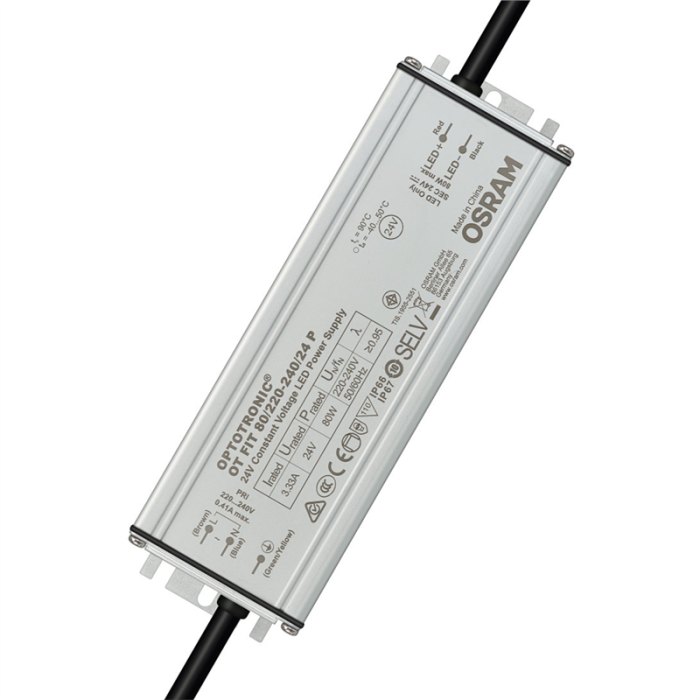

Led Driver Ot Fit 80/220-240/24 P 24v 80w 4062172085465

Osram Led Driver Ot Fit 80/220-240/24 P 24v 80w 4062172085465 LEDOTFIT8024P

EAN: 4062172085465

Areas of application
For example luminous signage in areas such as hotels
Public squares and architecture lighting
Suitable for indoor and outdoor SELV installations

Electrical data
Nominal output power: 80 W
Mains frequency: 50 60 Hz
Nominal voltage: NaN V
Device power loss: 10.3 W
Power factor ?: 0.95
Inrush current: < 50 A
Nominal output voltage: 24 V
Output ripple Voltage (100 Hz): < 2 %
Input voltage AC: 198 264 V

Dimensions & weight
Length: 170.0 mm
Width: 53.0 mm
Height: 31.5 mm
Mounting hole spacing, length: 153 mm
Mounting hole spacing, width: 27.0 mm
Product weight: 513.00 g

Temperatures & operating conditions
Ambient temperature range: -40 +50 DegC
Permitted rel. humidity during operation: 5 85 %

Capabilities
Suitable for fixtures with prot. class: I / II
Overheating protection: Yes
Overload protection: Yes
Short-circuit protection: Yes
No-load proof: Yes
Number of channels: 1
Dimmable: No

Programming
Tuner4TRONIC: No
Tuner4TRONIC Field App: No

Certificates & standards
Type of protection: IP66/IP67
Standards: Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to EN 55015/Acc. to EN 61547/Acc. to EN 61000-2-2/Acc. to EN 61000-3-2/Acc. to EN 60598-1/Acc. to EN 62384
Approval marks - approval: CE / CCC / TISI / RCM


Logistical data
Commodity code: 850440829000
